Pressure and Abrasion Resistant Hose
Pressure & Abrasion Resistant Hoses
Founded in 1952, TOTAKU INDUSTRIES, INC. has been a pioneer in the pipes and hose industry, creating the prioritizing customer satisfaction through exceptional quality, we continuously innovate to meet the evolving needs of our customers. At TOTAKU, we are dedicated to making a positive impact on the world by developing unique, thoughtful products that address modern challenges.
FEATURED PRODUCTS
Notice:
- The data in this catalog uses values in a straight hose configuration.
- The permissible pressure is not the maximum operating pressure. Please refer to the “Operating Pressure Design Table” in the hose handling precautions and configure according to the operating pressure (normal working pressure). Also, please note that the combination of fittings and clamps, operating temperature, and bending conditions may affect performance.
TOTAKU LINE POWER-AT
Features
- Exceptional pressure resistance with an allowable pressure of 145 psi (1.00 MPa) at normal temperature, built to minimize stretch under pressure.
- Outstanding durability.
- Engineered to withstand external pressure with minimal deformation.
Applications
- Suction and discharge of muddy water in civil engineering projects.
- Suction and discharge of materials like sand, gravel, and sludge.
- Ideal for dredging and land reclamation work.
- Suction and discharge of powdered and granular materials, such as cement.
- Transport of high-viscosity substances and transfer over long vertical distances.
Cautions
- Avoid long-term storage outdoors, as this may cause cracks to form due to ozone degradation.
Standard Dimensions and Properties

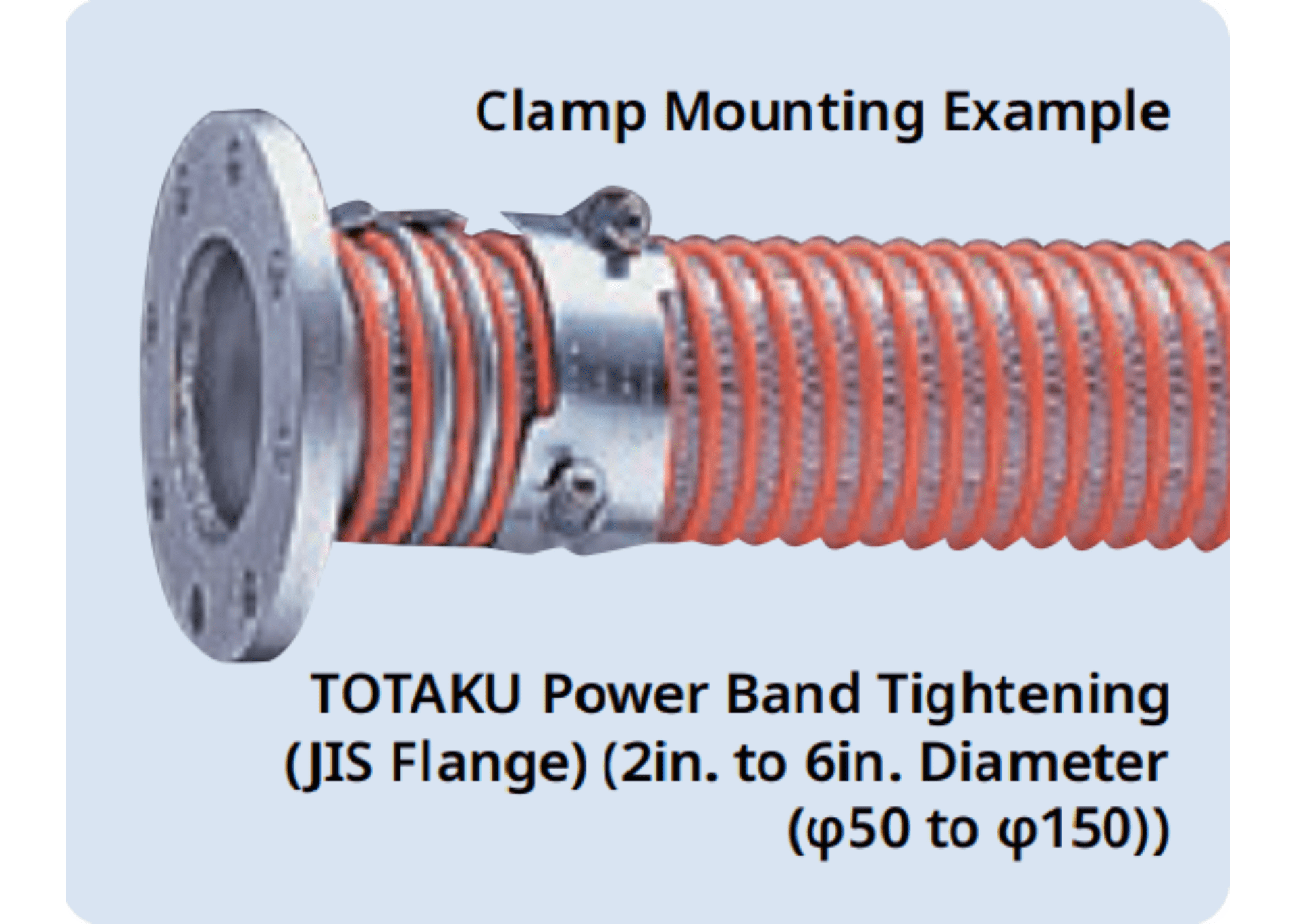

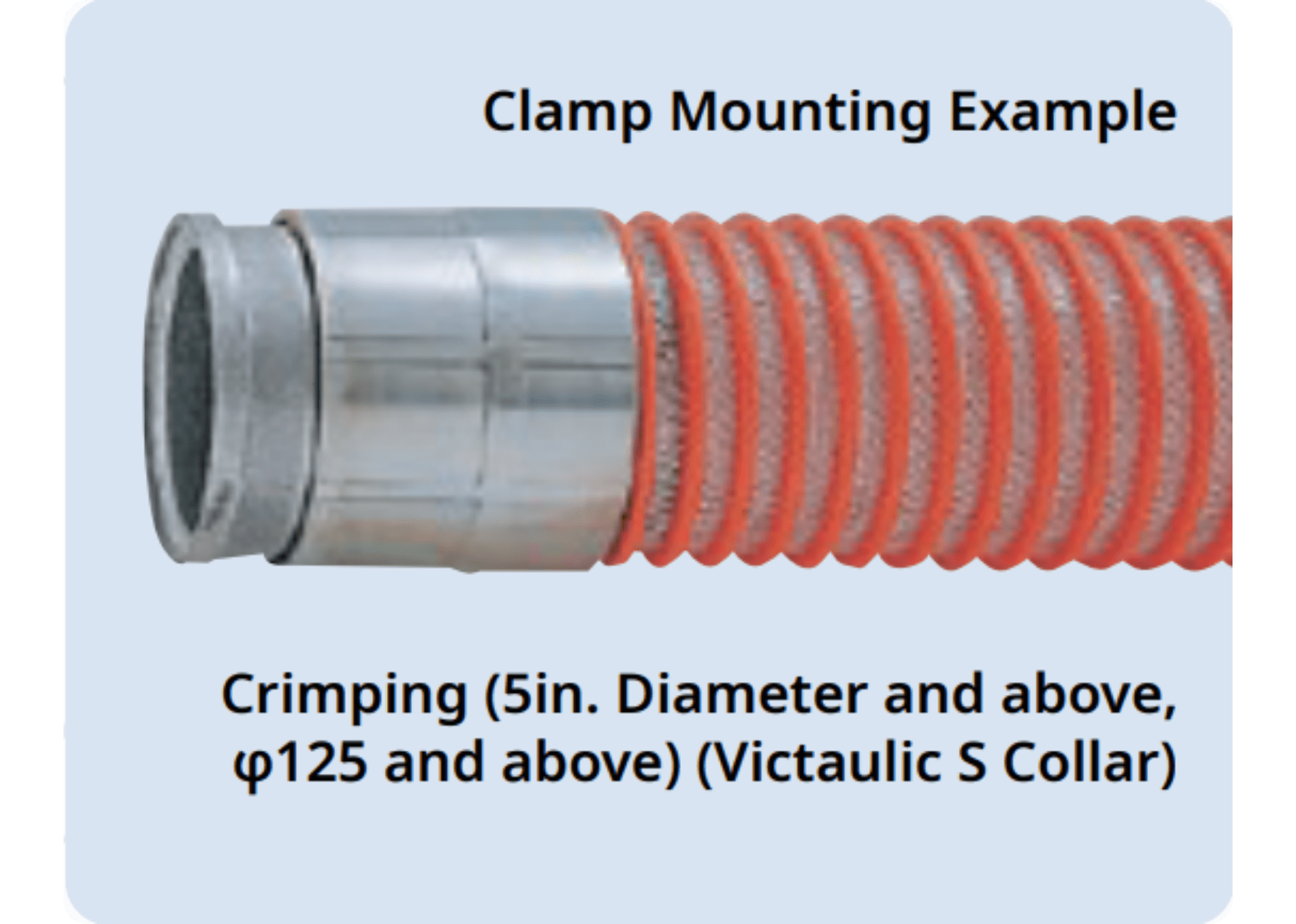

The TOTAKU Power Band can be installed on-site.
(For 8 in (ϕ200), crimping is recommended for added safety.)
- Pre-install the TOTAKU Power Band onto the hose, and then insert the fitting.
- Use a torque wrench to tighten the bolts. Be cautious not to overtighten, as it could damage the hose.
Tightening Torque:
- 2 in (ϕ50), 2.5 in (ϕ65): 10.84 lb-ft (14.7 N·m)
- 3 in (ϕ75): 14.46 lb-ft (19.6 N·m)
- 4 in (ϕ100), 5 in (ϕ125): 18.07 lb-ft (24.5 N·m)
- 6 in (ϕ150), 8 in (ϕ200): 21.69 lb-ft (29.4 N·m)
Note:
For on-site installation, take safety precautions to prevent accidents caused by fittings becoming loose. It is recommended to secure the TOTAKU Power Band to the flange or connection points using wire or binding materials.
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Note:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
SHIMETAC for LINE POWER-AT
Applicable Sizes: 2 in (φ50 mm) to 6in (φ150mm)
Features
- The allowable pressure with a SHIMETAC connection matches the allowable pressure of the hose itself.
- Fittings can be easily attached and removed on-site.
Notes
- Be sure to use the dedicated fittings for SHIMETAC.
- The fittings shown below are examples.

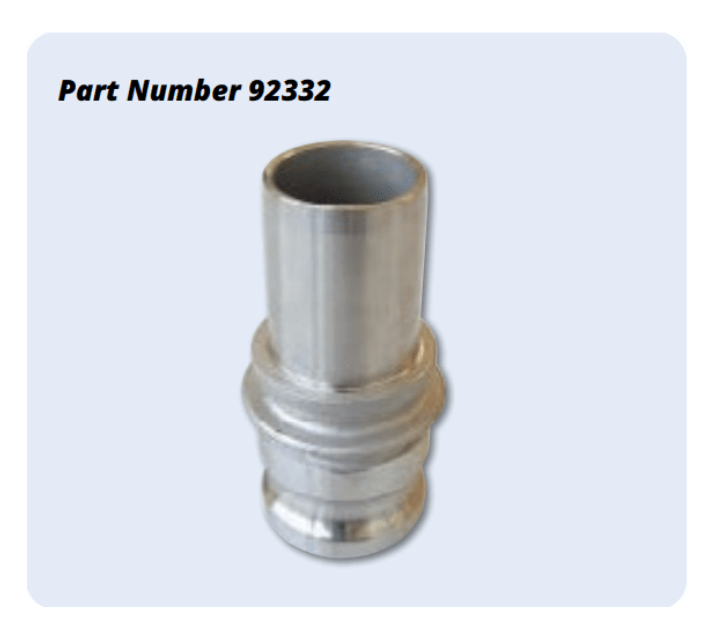

Dedicated Fittings for SHIMETAC

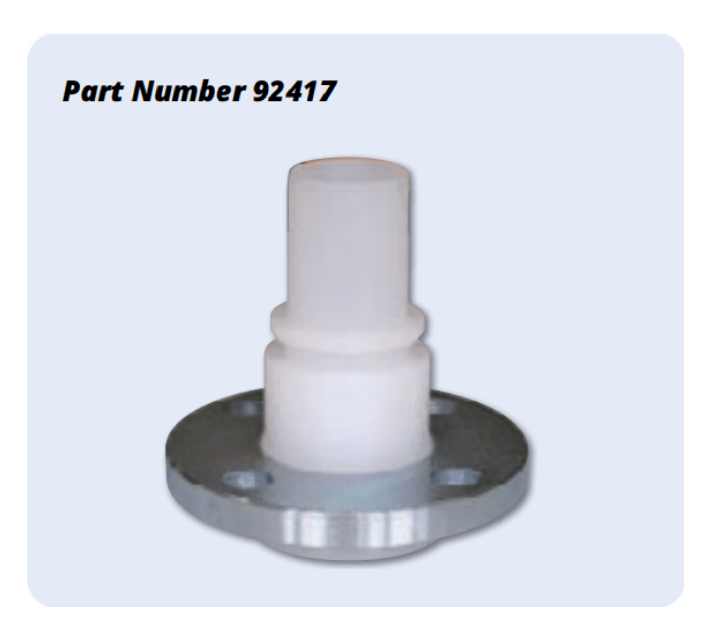

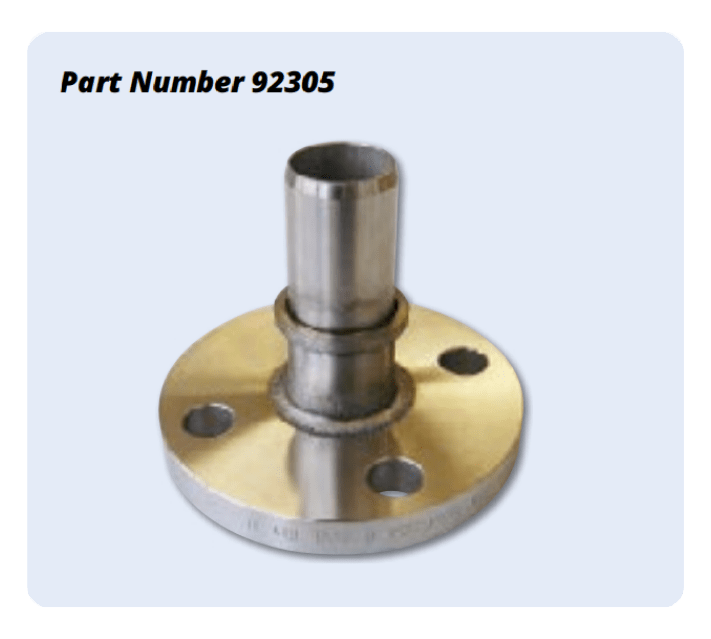

Flange with SHIMETAC Shank
(Steel Structure)
S Collar with SHIMETAC Shank
(Steel Structure)
TOTAKU LINE POWER-AT
TOTAKU LINE POWER-ATS
Features
- A large-diameter version of the TOTAKU LINE POWER-AT.
- Designed with a thicker layer of abrasion-resistant rubber compared to the standard TOTAKU LINE POWER-AT.
Applications
- Suction and discharge of sand, gravel, sludge, and grains during harvest.
- Suitable for dredging and land reclamation projects.
- Suction and discharge of powdered and granular materials, such as cement.
Cautions
- Avoid long-term storage outdoors, as this may lead to cracks caused by ozone degradation.
Installation of Fittings
- Fitting installation is performed at our factory.
Standard Dimensions and Properties
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
TOTAKU LINE POWER-ATL
Features
- A lightweight version of the TOTAKU LINE POWER-AT.
Applications
- Suction and discharge of muddy water for civil engineering projects, such as mud-water shield construction.
- Suction and discharge of powdered and granular materials, such as cement.
- Transport of high-viscosity substances and transfer over long vertical distances.
Cautions
- Avoid long-term storage outdoors, as this may lead to cracks caused by ozone degradation.
Standard Dimensions and Properties
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
TOTAKU LINE POWER-WA
Features
- With an allowable pressure of 218 psi (1.50 MPa) at normal temperature, this hose offers the highest pressure resistance among pressure- and abrasion-resistant hoses.
Applications
- Suitable for general water supply, cooling water, and wastewater.
- Ideal for water supply and discharge in general factories, civil engineering and construction sites, and shipbuilding facilities.
Durability Performance
(Repeated Water Pressure Test)
- Hoses in a straight configuration were repeatedly pressurized from 0 to 218 psi (0 to 1.50 MPa) at 20-second intervals.
- Result: No abnormalities were found after 50,000 cycles for all sizes.
Installation of Fitting
- Fitting installation is performed at our factory.

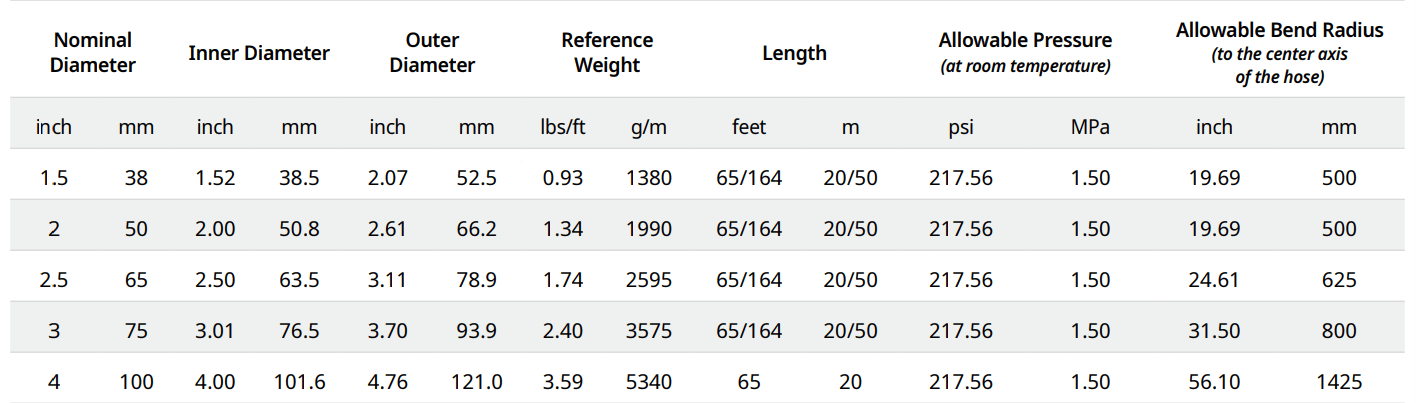

Standard Dimensions and Properties
Operating Temperature Range:
Suction:
°F: -4 to 194 °C: -20 to 90
Discharge:
°F: -4 to 176 °C: -20 to 80
Notes
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
TOTAKU LINE POWER-C
Features
- A fully resin-based pressure-resistant hose.
- Excellent pressure resistance with minimal elongation.
- The outer surface is protected by rigid PVC, making it highly resistant to external abrasion and preventing exposure of the reinforcement fibers.
Applications
- For water use (e.g., high head water transfer or the discharge section of a submersible pump).
- Transport of high-viscosity substances on steep slopes.
- Suitable for both suction and delivery applications.
Installation of Fitting
- Fitting installation is performed at our factory.
Standard Dimensions and Properties
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
Pressure and Abrasion Resistant Hose
General Hose
TOTAKU General Suction/Discharge Hoses
Founded in 1952, TOTAKU INDUSTRIES, INC. has been a pioneer in the pipes and hose industry, creating the world's first flexible hose. Driven by our core principle of prioritizing customer satisfaction through exceptional quality, we continuously innovate to meet the evolving needs of our customers. At TOTAKU, we are dedicated to making a positive impact on the world by developing unique, thoughtful products that address modern challenges.
Featured Products
Notice:
- The data in this catalog uses values in a straight hose configuration.
- The permissible pressure is not the maximum operating pressure. Please refer to the “Operating Pressure Design Table” in the hose handling precautions and configure according to the operating pressure (normal working pressure). Also, please note that the combination of fittings and clamps, operating temperature, and bending conditions may affect performance.
TOTAKU LINE ACE
Features
- This is a pressure-resistant type of SD hoses.
- It is equipped with a reinforcement cord, providing an allowable pressure of 72.5 psi (0.50 MPa). For diameters of 10 inches (ϕ250) and 12 inches (ϕ300), the allowable pressure is 36.3 psi (0.25 MPa).
Applications
- Suitable for general discharge and suction use.
- Ideal for submersible pump startups, steep slopes, and hose suspension applications.

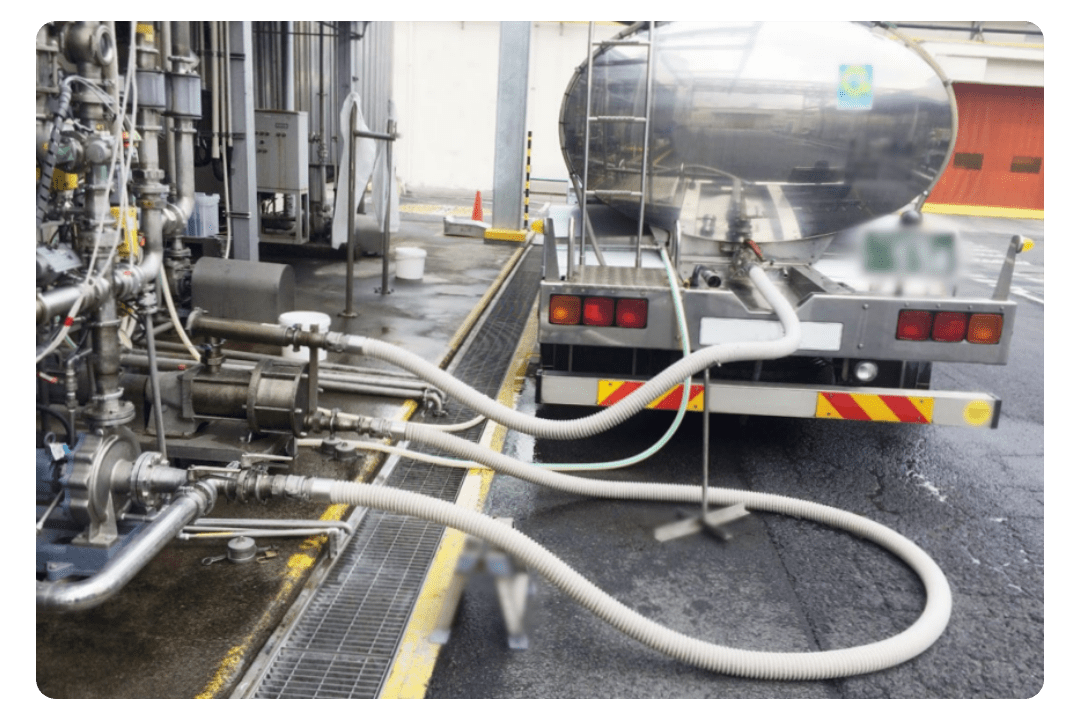

- Effective for suction use in tank trucks.

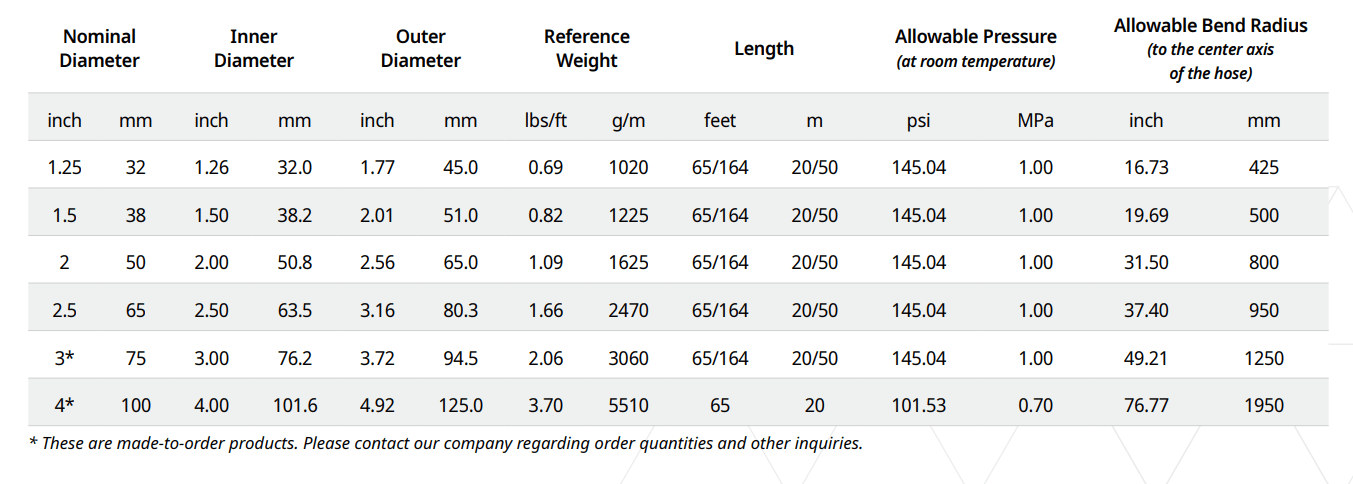

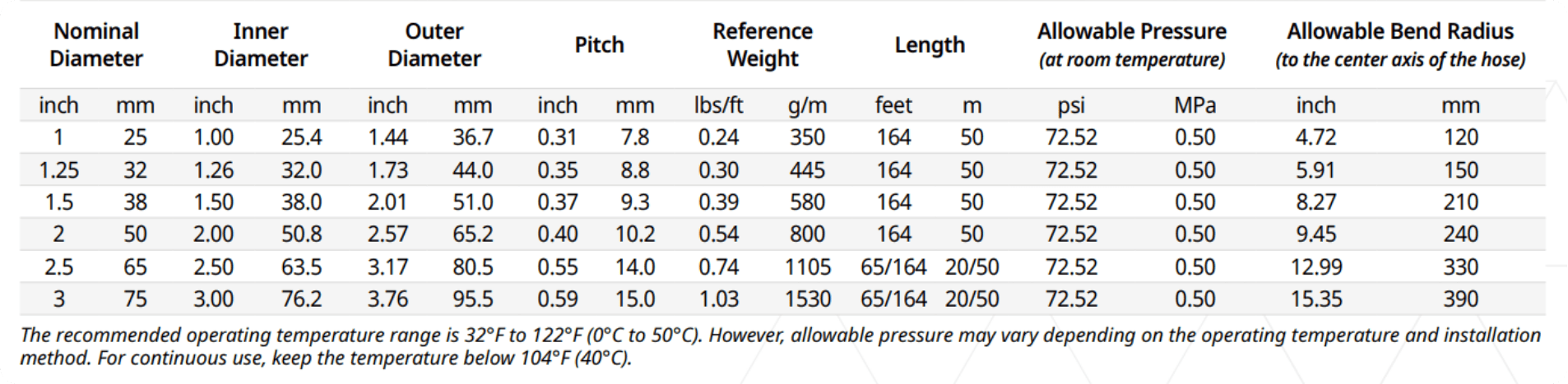

Standard Dimensions and Properties
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.

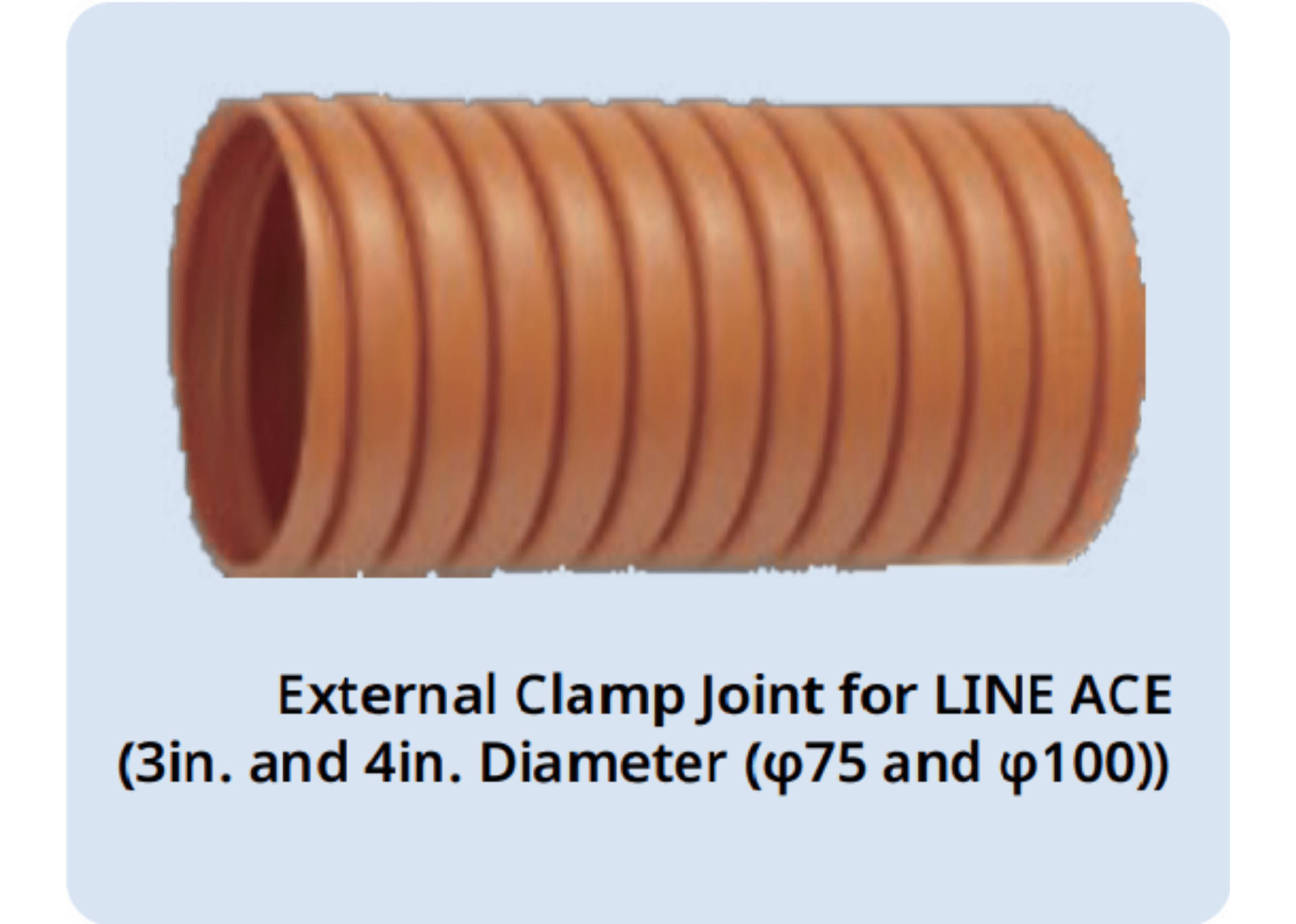

SHIMETAC for TOTAKU LINE ACE
[Applicable Sizes: 1 inch (φ25)*, 1.5 inches to 4 inches (φ38 to φ100)] *For 1 inch (φ25), use the "SHIMETAC for TOTAKU ECO LINE"
Features
- Lightweight due to resin construction
- Rust-free because of resin material
- High durability
Repeated pressure resistance tests were conducted:
- SHIMETAC were attached to both ends of a straight LINE ACE hose, and repeated pressures ranging from 0 to 72.5 psi (0.5 MPa) were applied at 20-second intervals.
- Result: All sizes showed no abnormalities after 100,000 cycles.
Notes
- Be sure to use the dedicated fittings for SHIMETAC.
- The fittings shown below are examples.

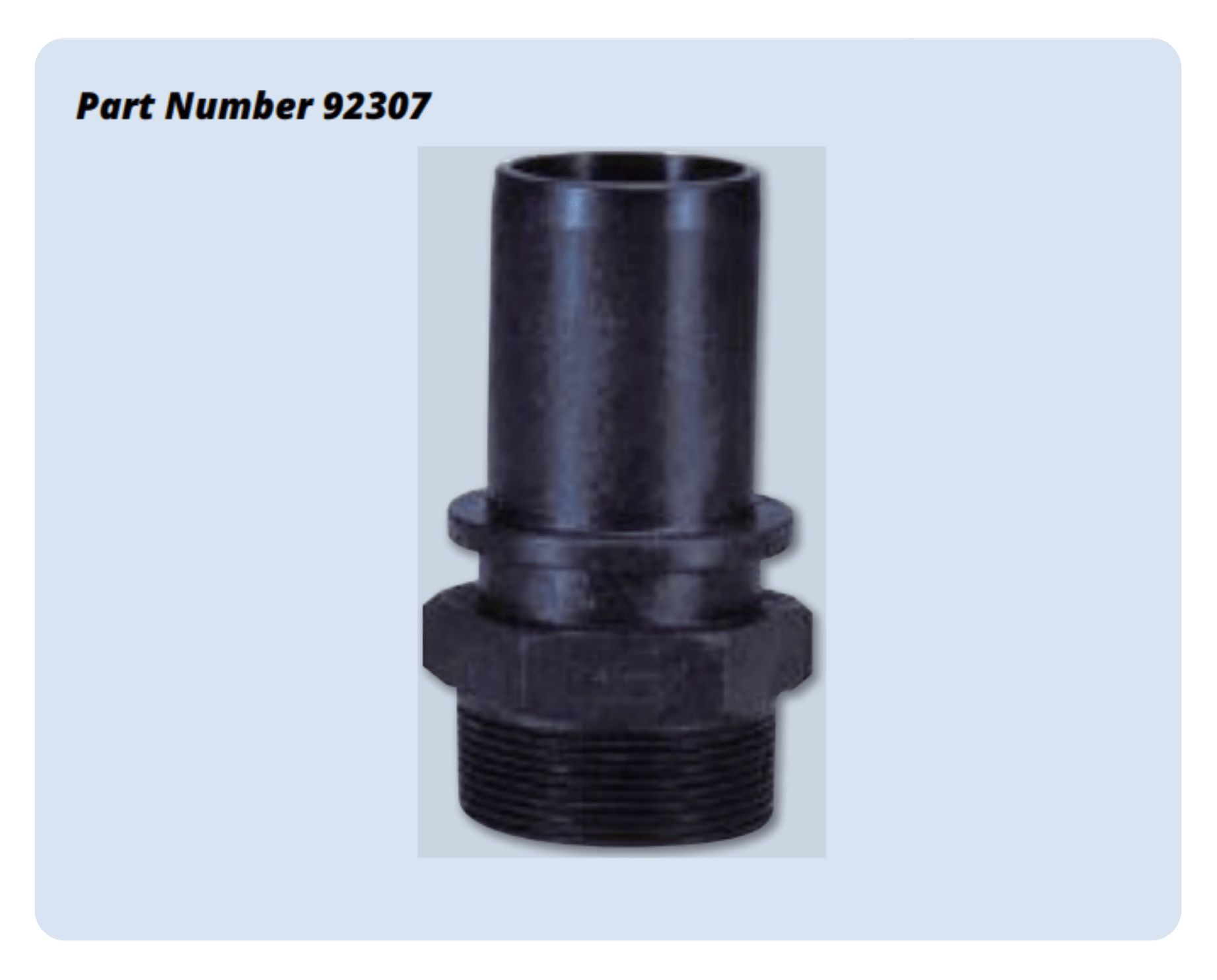

Dedicated Fittings for SHIMETAC
PT (Pipe Taper) SHIMETAC shank (Resin)*
* Available sizes: 1.5 inches (φ38) and 2 inches (φ50) only.

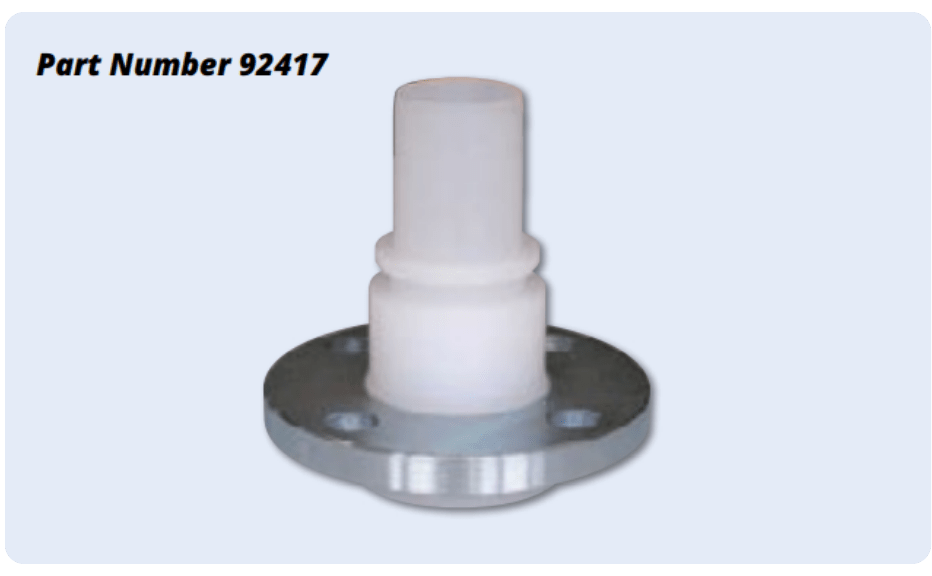

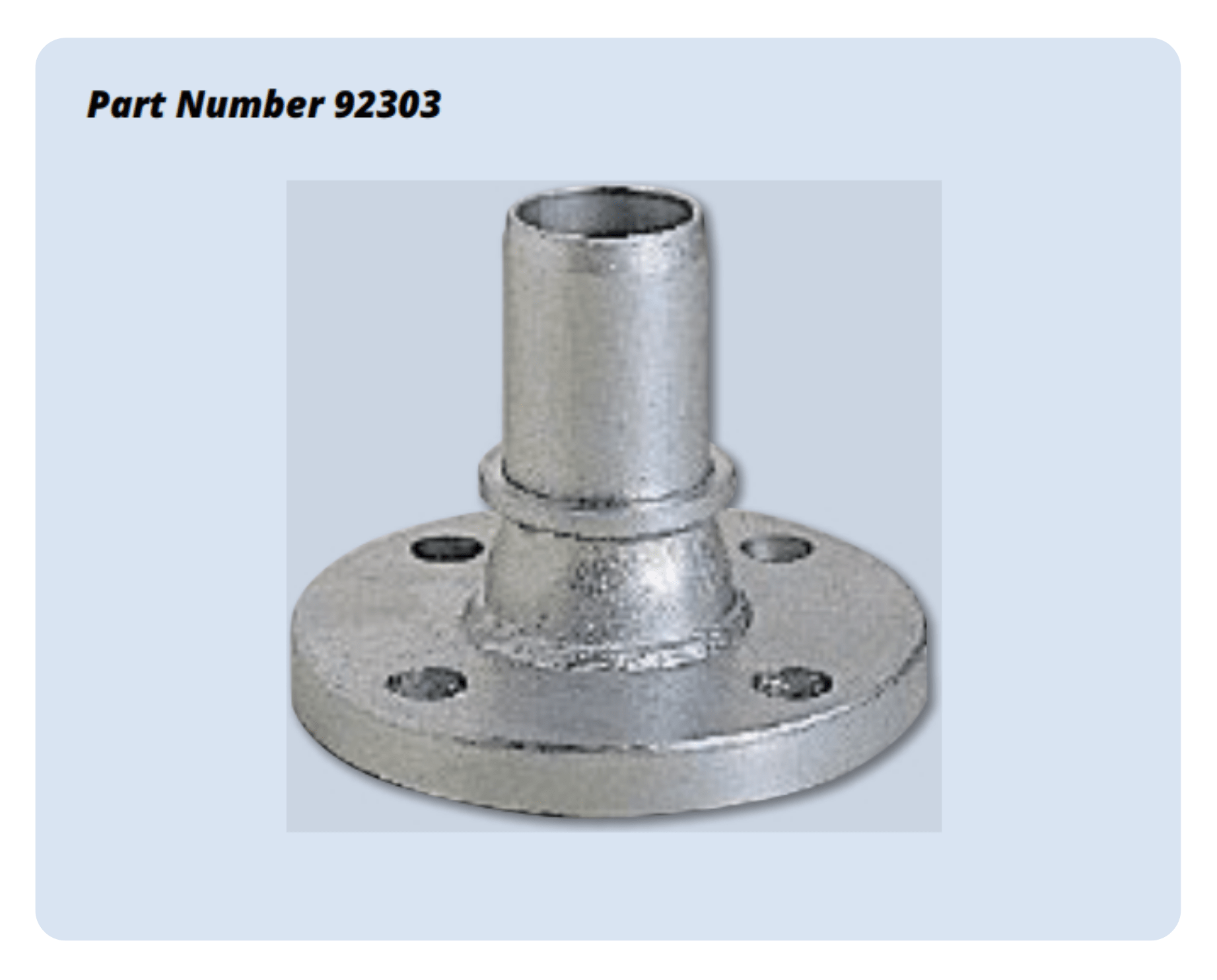

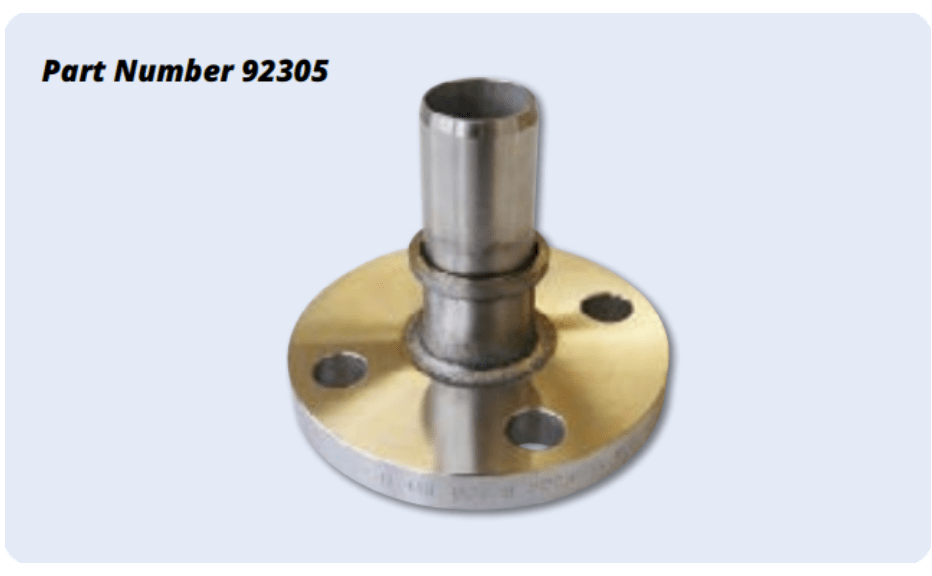

Flanged SHIMETAC shank
(Steel Structure)

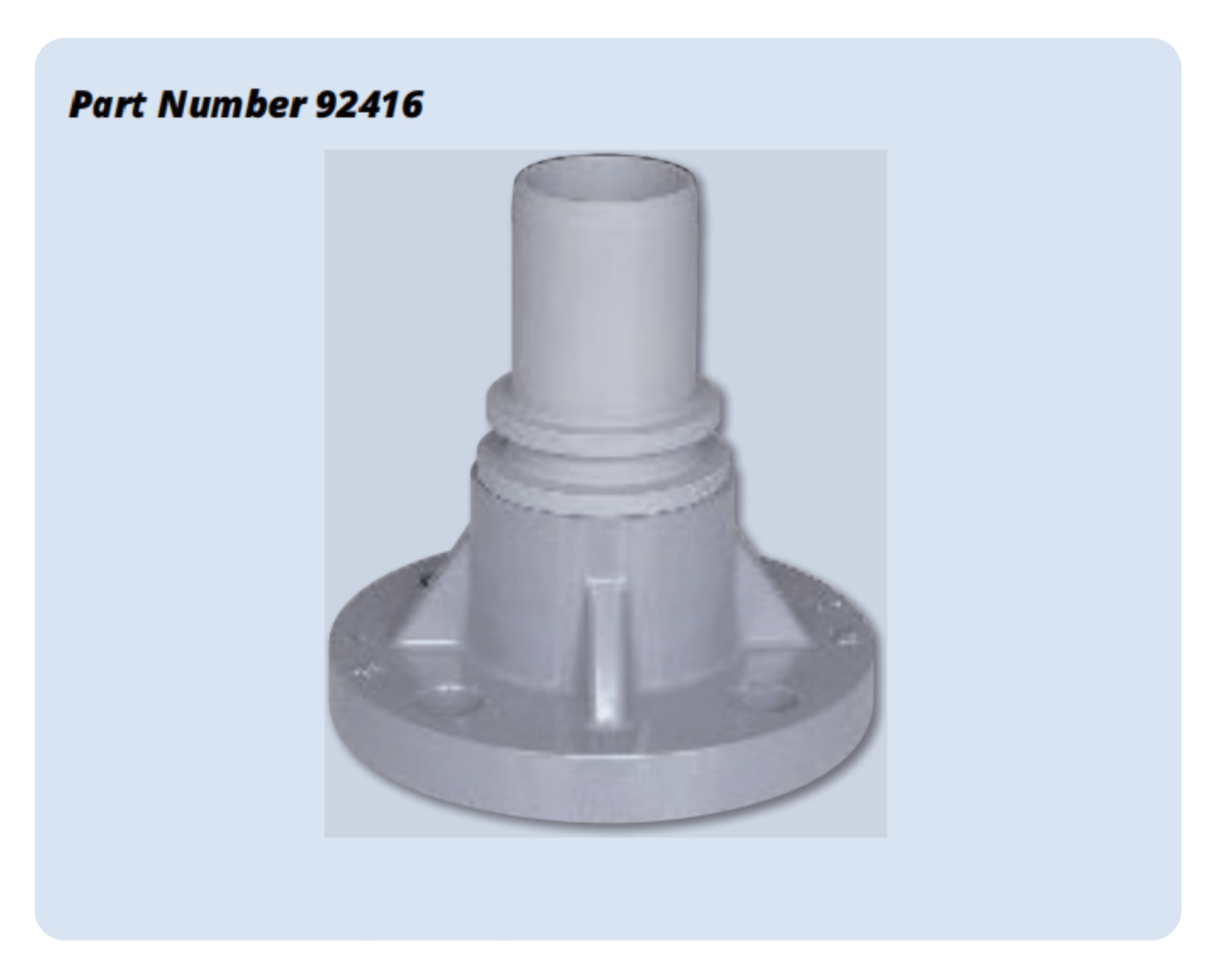

Flanged SHIMETAC shank
with TaperedSocket (PVC)
M1 SHIMETAC shank
(Steel Structure)

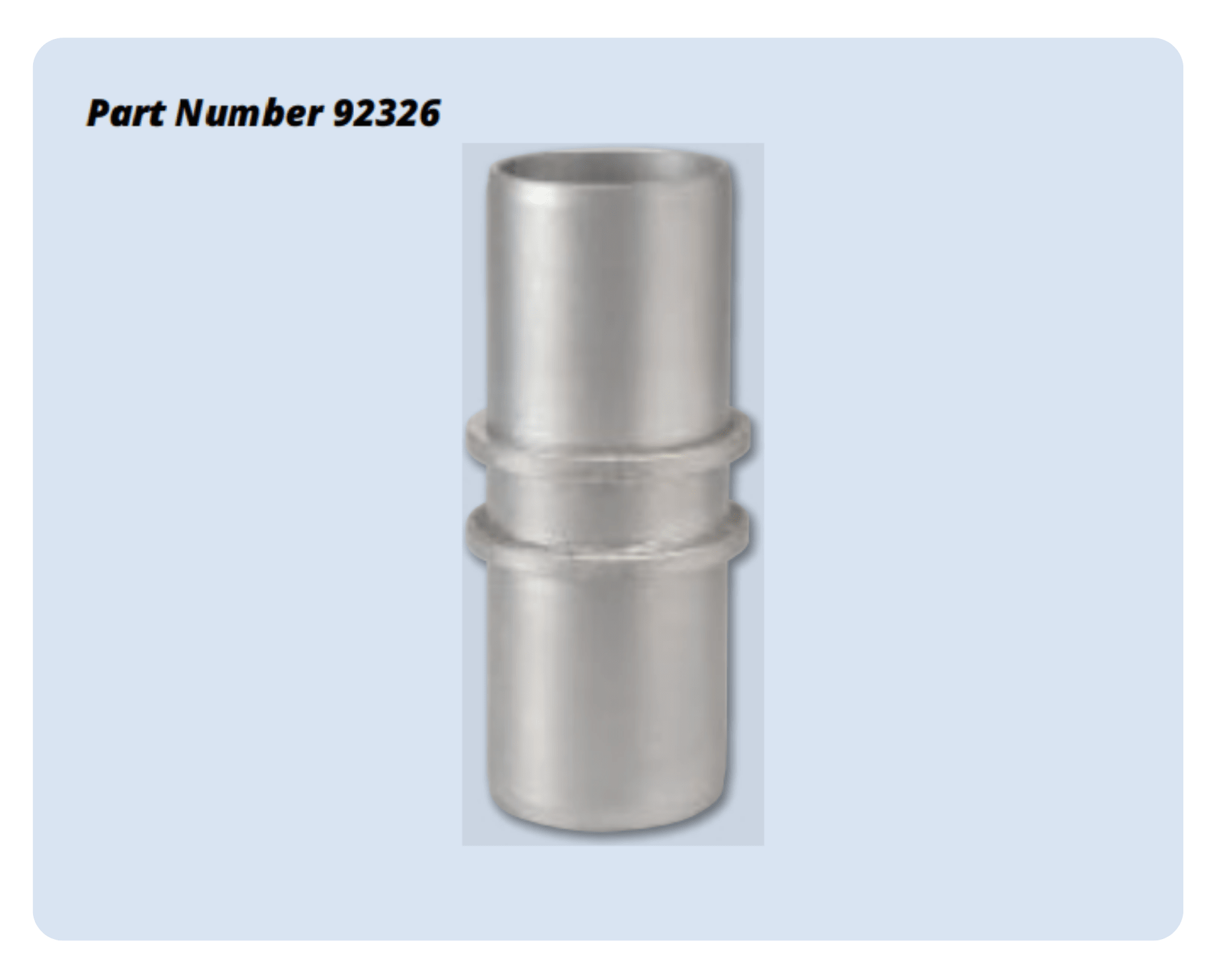

Double-Ended SHIMETAC shank
(Steel Structure)

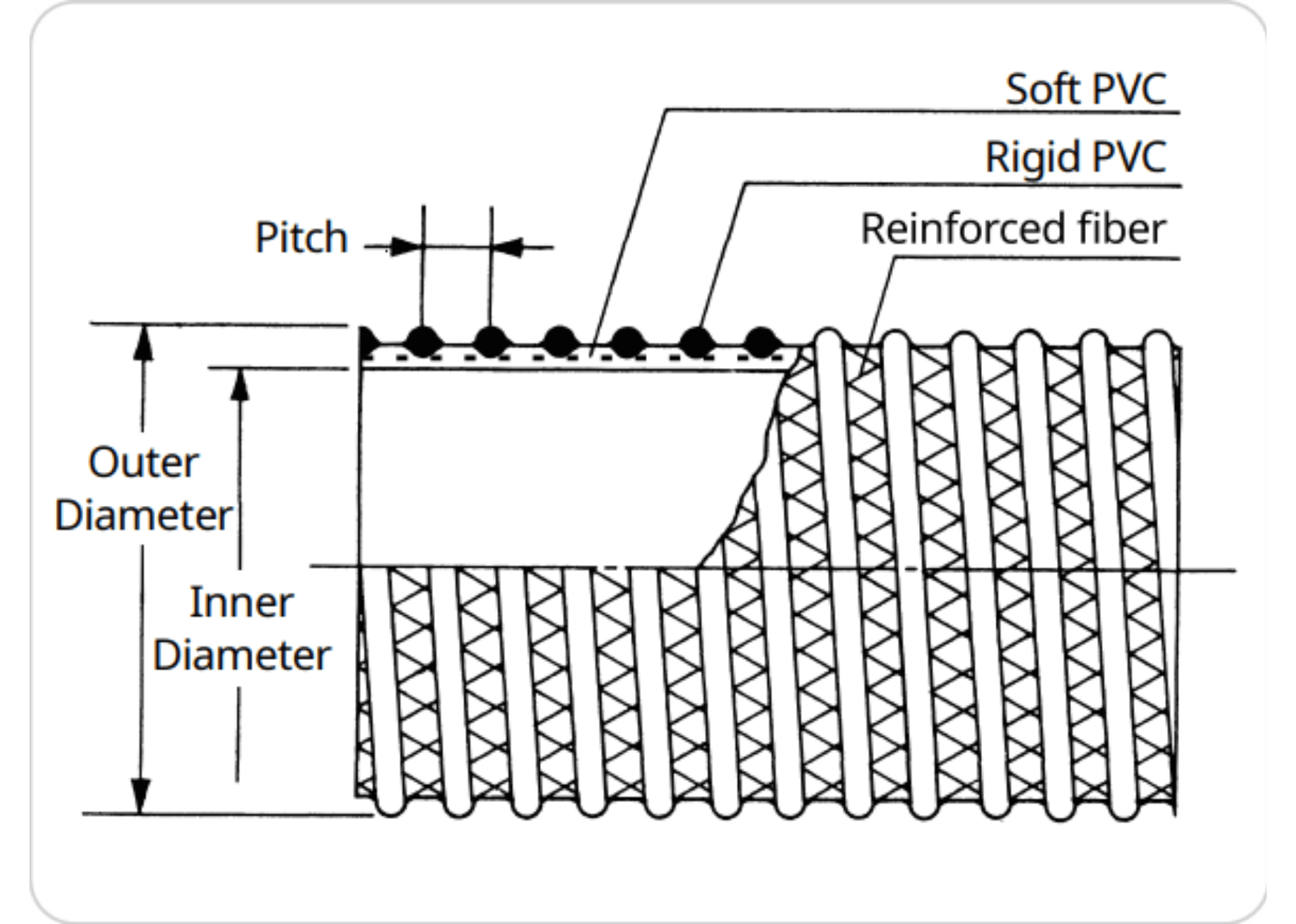

TOTAKU SD-A
Features
- The corrugated outer surface (with a smooth inner surface) ensures outstanding flexibility.
- The completely transparent material makes it easy to monitor the internal fluids.
Applications
- Suitable for both suction and discharge, but especially ideal for suction use.
- Useful for irrigation.
- Effective for suction and drainage at industrial and civil engineering sites.

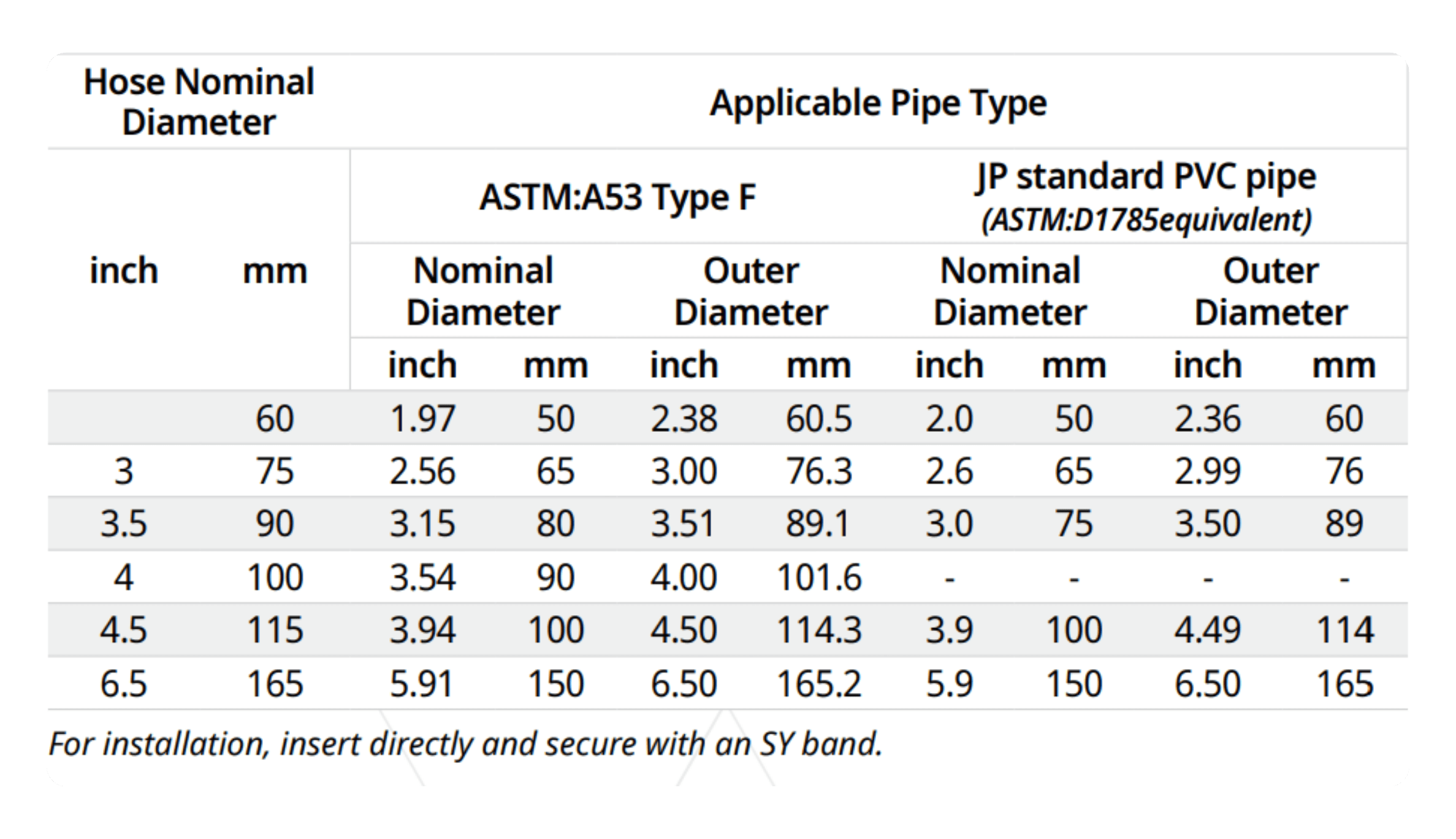

Compatibility Chart for Steel and PVC Pipes

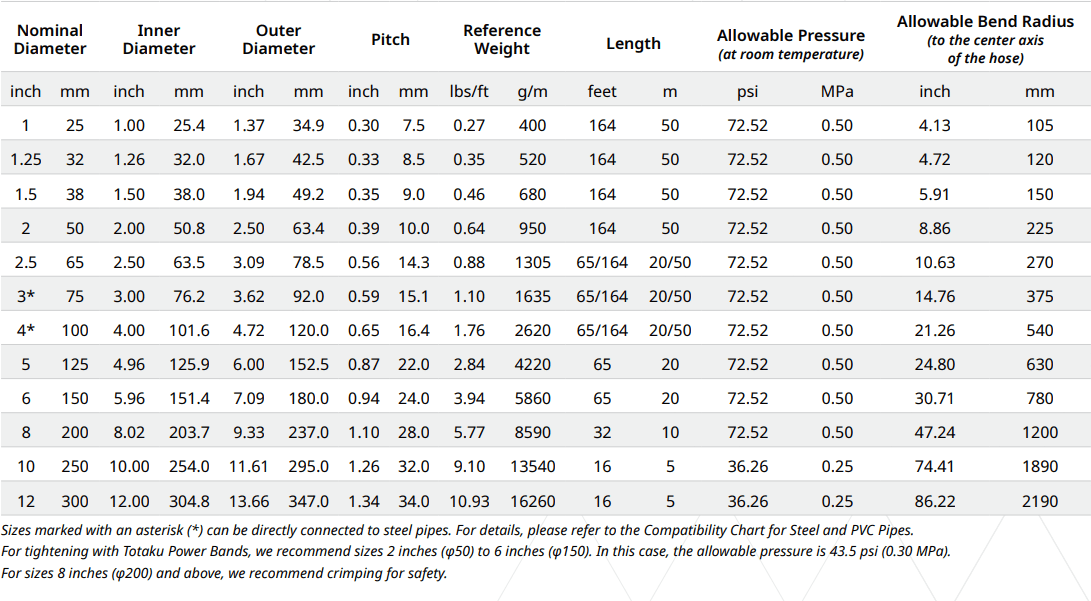

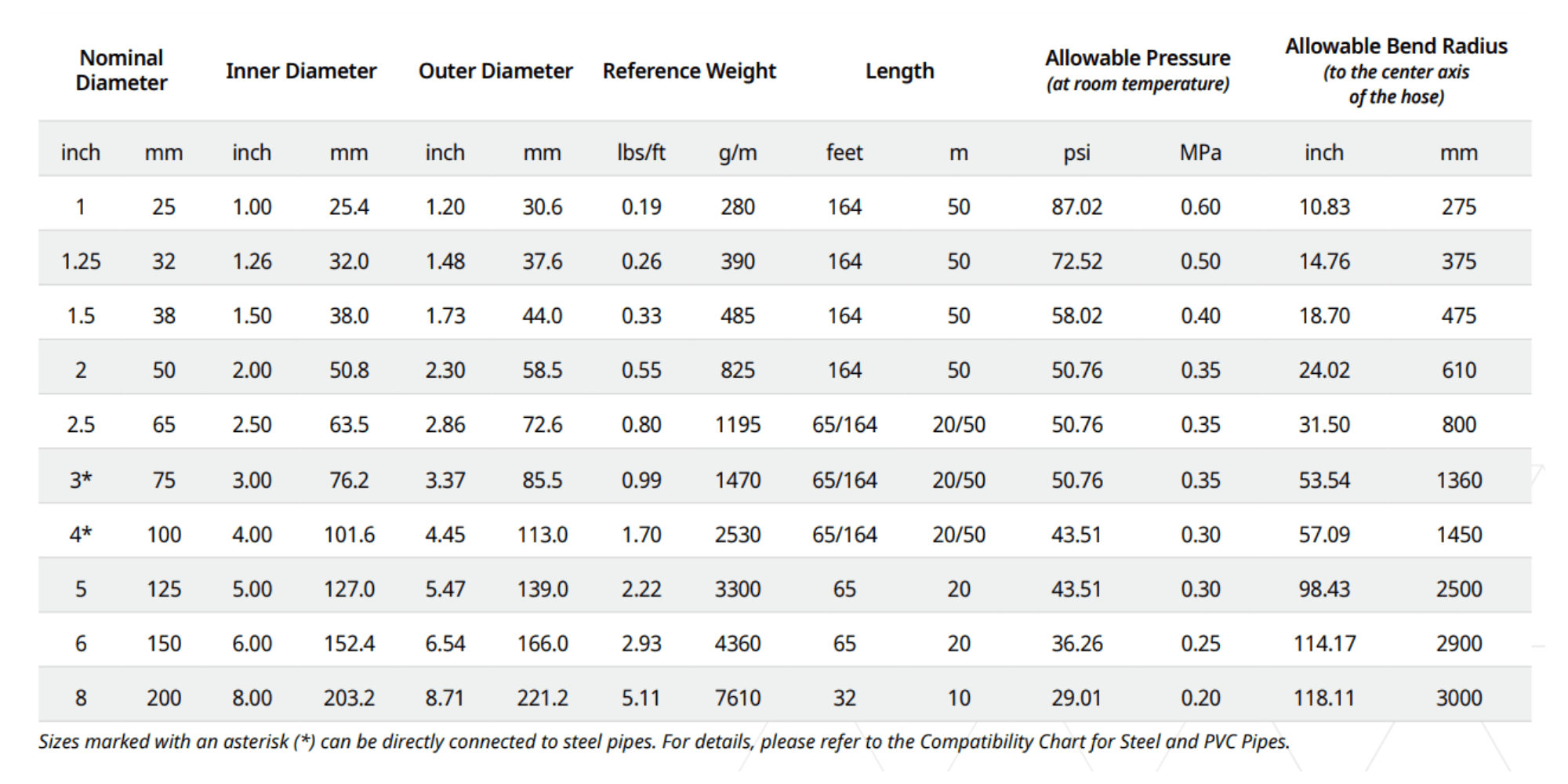

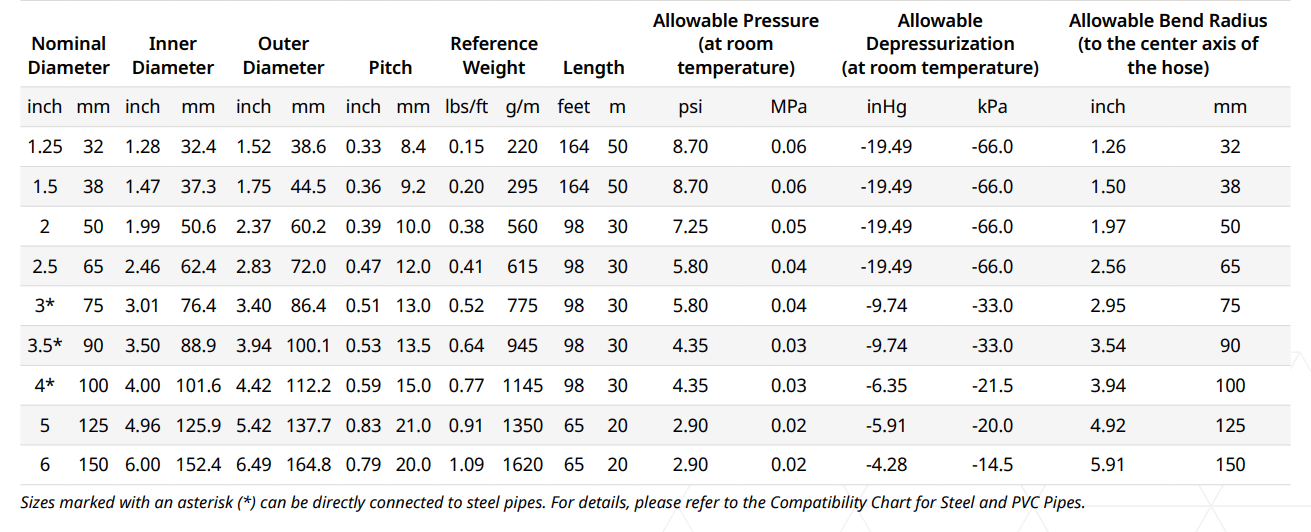

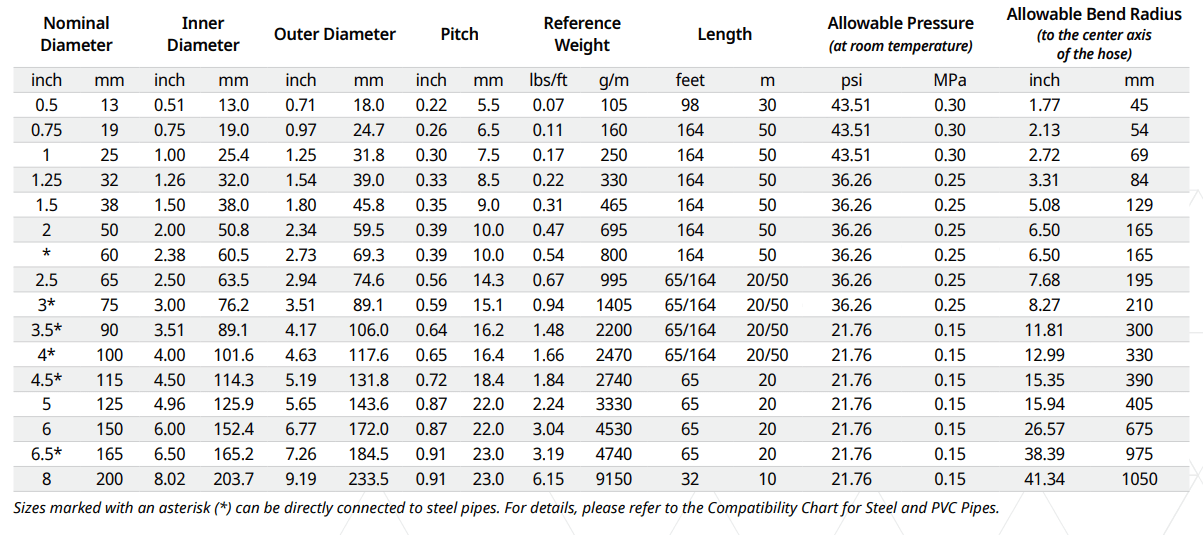

Standard Dimensions and Properties
Operating Temperature Range:
°F: 14 to 122 | °C: -10 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
TOTAKU SD-A2
Features
- This is a lightweight version of TOTAKU SD-A.
- It provides enhanced flexibility compared to TOTAKU SD-A.
Applications
- Suitable for both suction and discharge, but especially ideal for suction use.
- Useful for irrigation.
- Effective for suction and drainage at industrial and civil engineering sites.

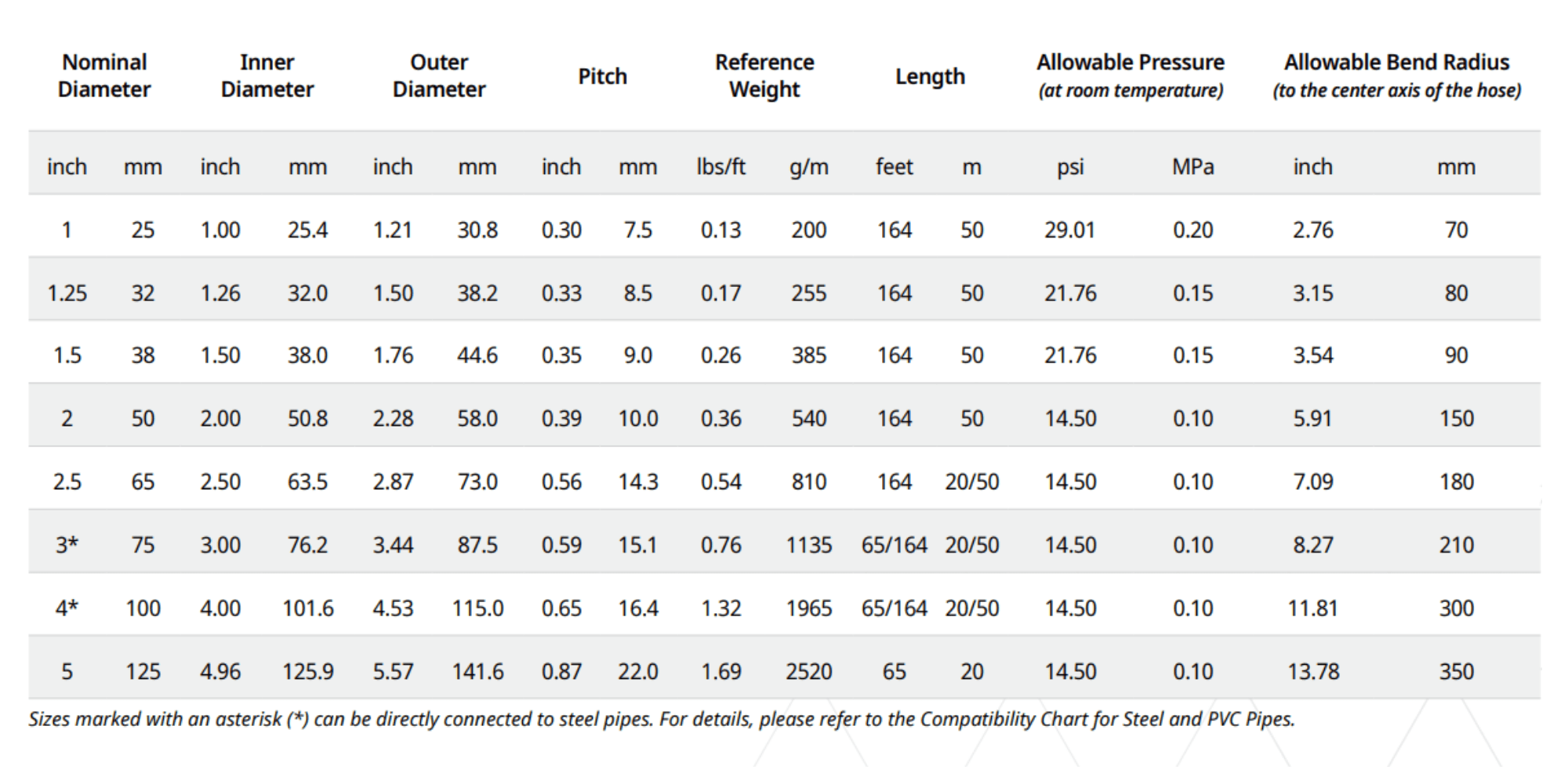

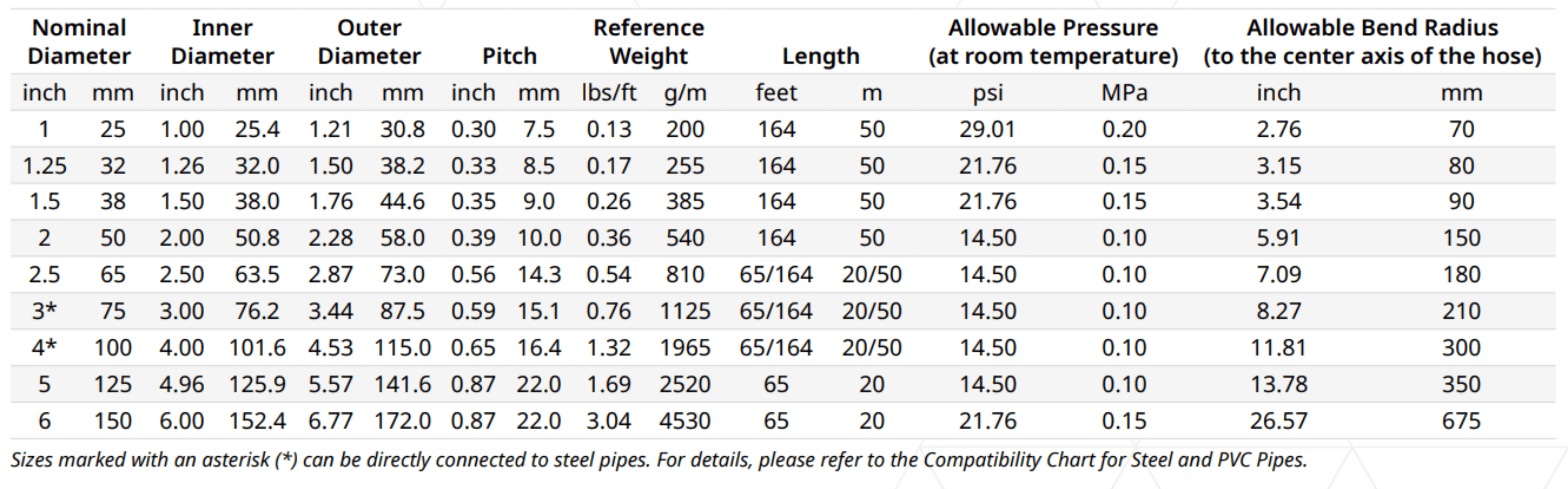

Standard Dimensions and Properties
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
TOTAKU SD-C
Features
- Smooth surfaces on both the interior and exterior.
- Offers better pressure resistance than TOTAKU SD-A.
- The transparent soft section enables easy monitoring of transported materials.
Applications
- Suitable for both suction and discharge, but especially ideal for discharge use.
- Useful for suction and drainage in agriculture, industry, and civil construction.

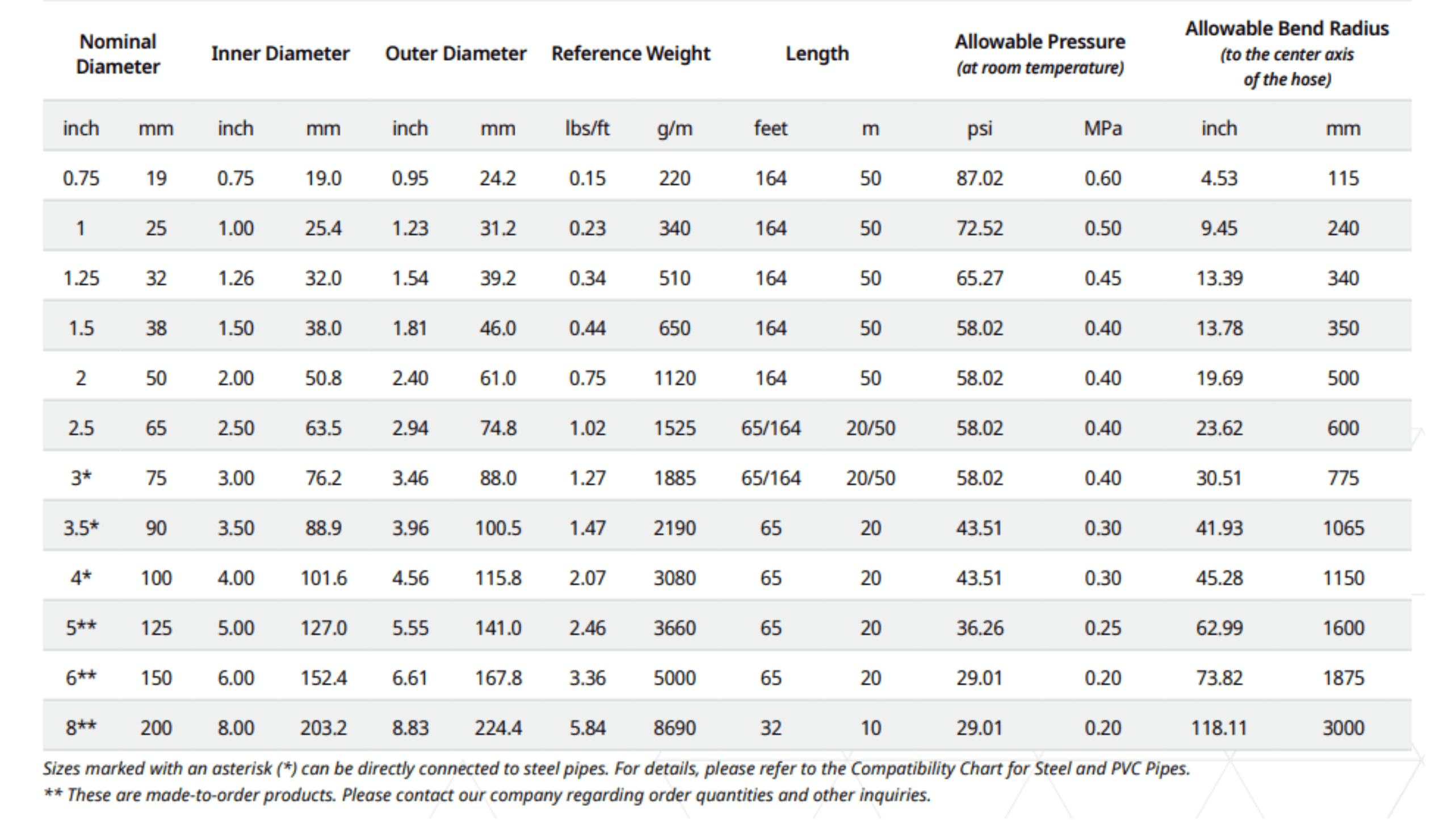

Standard Dimensions and Properties
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
TOTAKU SD-C3
Features
- This is a lightweight version of TOTAKU SD-C.
Applications
- Suitable for both suction and discharge, but especially ideal for discharge use.
- Useful for suction and drainage in agriculture, industry, and civil construction.
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
General Hose
Antistatic Hose
TOTAKU Anti-Static Hoses and Ducts
For powders and granules Founded in 1952, TOTAKU INDUSTRIES, INC. has been a pioneer in the pipes and hose industry, creating the world’s first flexible hose. Driven by our core principle of prioritizing customer satisfaction through exceptional quality, we continuously innovate to meet the evolving needs of our customers. At TOTAKU, we are dedicated to making a positive impact on the world by developing unique, thoughtful products that address modern challenges.
Featured Products
Notice:
- The data in this catalog uses values in a straight hose configuration.
- The permissible pressure is not the maximum operating pressure. Please refer to the “Operating Pressure Design Table” in the hose handling precautions and configure according to the operating pressure (normal working pressure). Also, please note that the combination of fittings and clamps, operating temperature, and bending conditions may affect performance.
TOTAKU SD-CE
Features
- Equipped with a built-in copper grounding wire for enhanced static electricity prevention.
- Transparent design allows for easy visual confirmation of transported materials.
Applications
- Ideal for transporting resin pellets.
- Suitable for transporting powders and granules (non-food items).

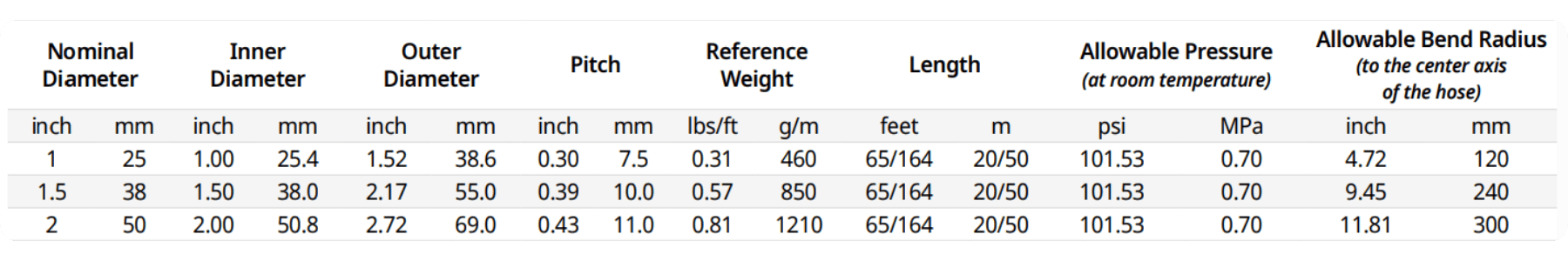

Standard Dimensions and Properties

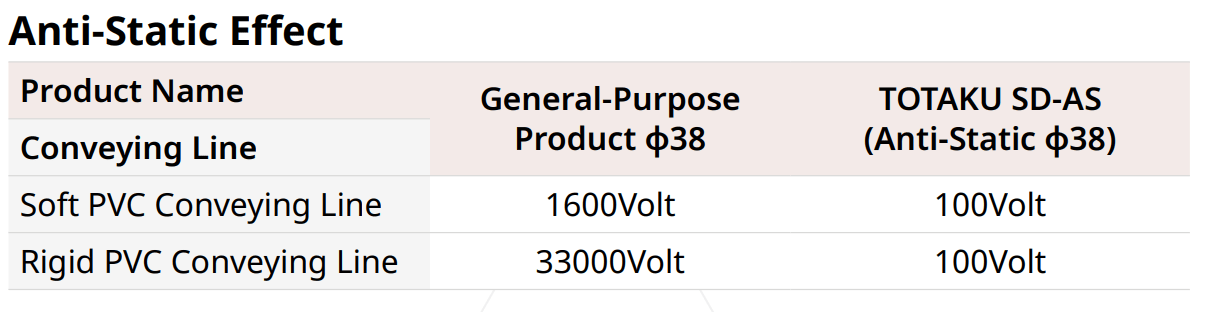

TOTAKU SD-AS
Features
- Made with a specially formulated soft resin that provides long-lasting static electricity prevention (refer to the “Anti-Static Effect” table below for details).
- The clear green material allows for visual confirmation of transported items.
Applications
- Ideal for transporting resin pellets.
- Suitable for transporting powders and granules (non-food items).
Standard Dimensions and Properties

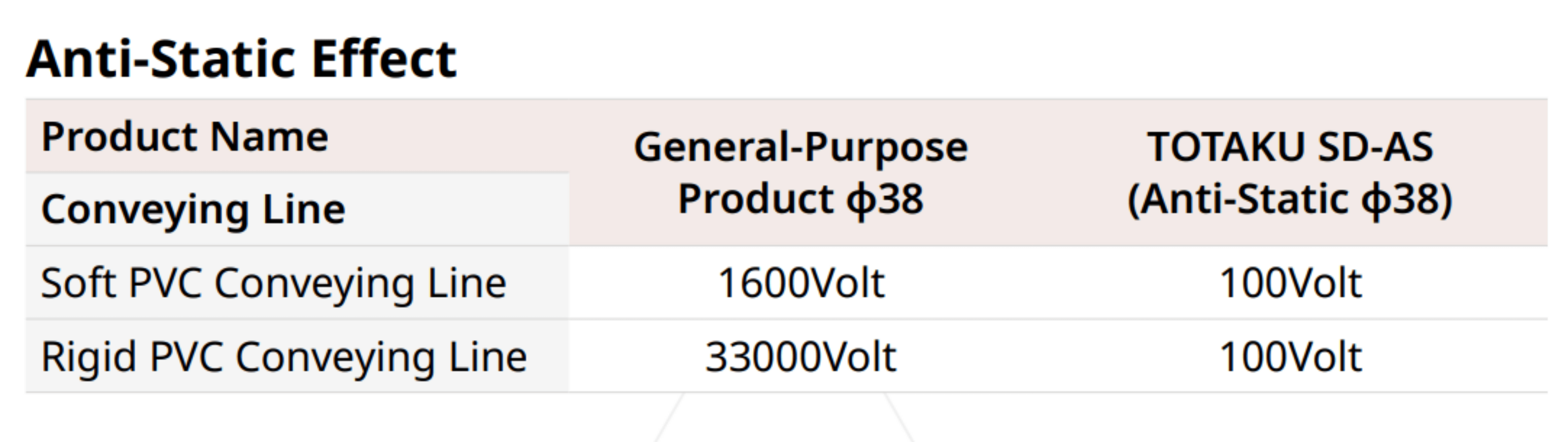

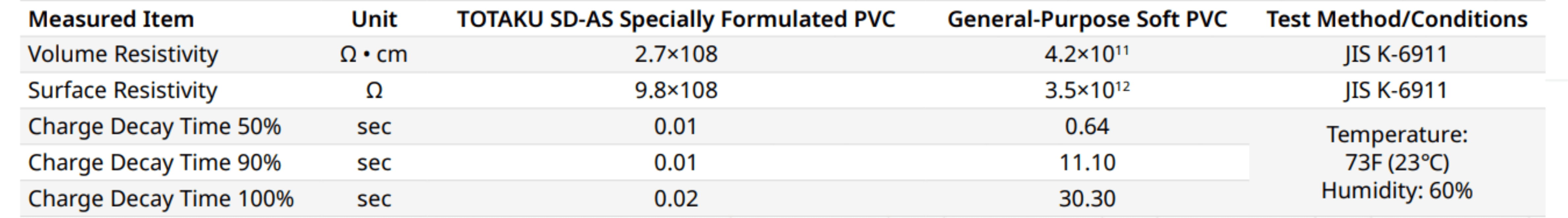

Material Properties
Operating Temperature Range:
°F: 14 to 122 °C: -10 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (−0.1 MPa) is feasible at room temperature.
TOTAKU DUCT-AS
Features
- This is the duct type of the TOTAKU SD-AS hose.
- Made with a specially formulated soft resin that provides long-lasting static electricity prevention (refer to the “Anti-Static Effect” table below for details).
Applications
- Suitable for exhaust in environments where static electricity must be avoided.
- Ideal for dust collection in woodworking machinery.
- Also suitable for transporting non-food powders.

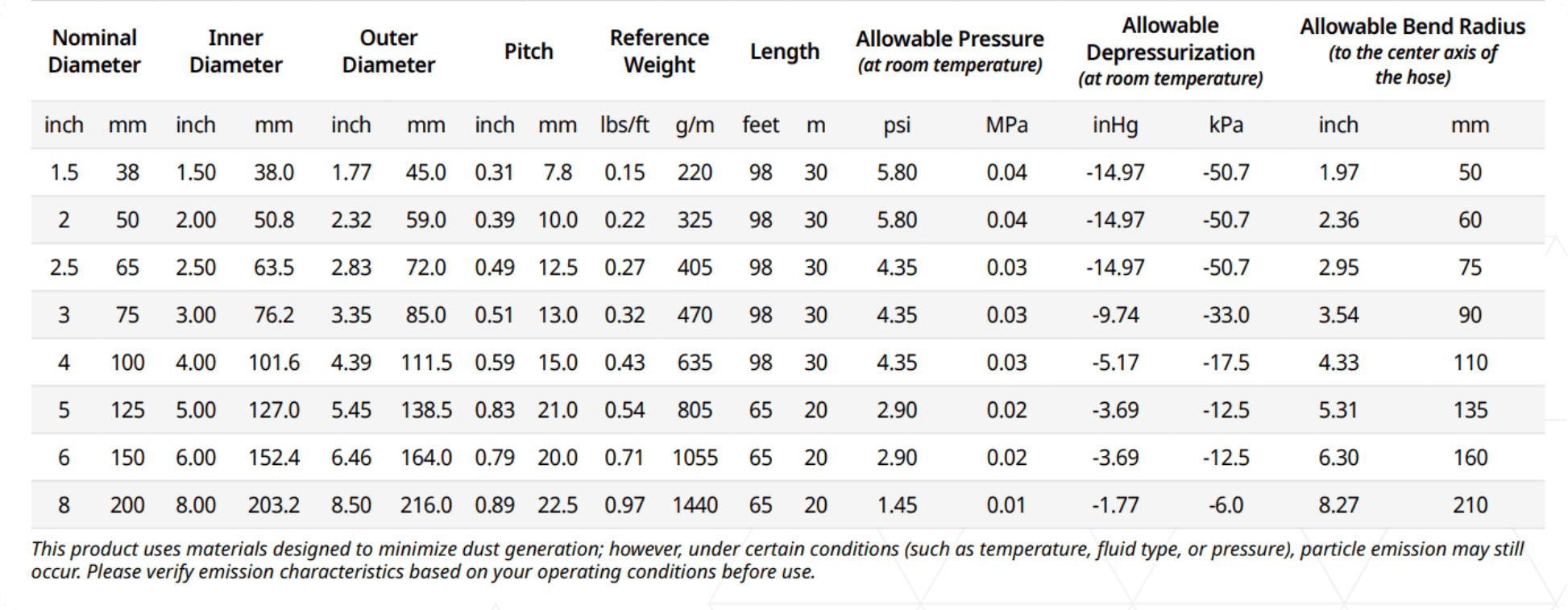

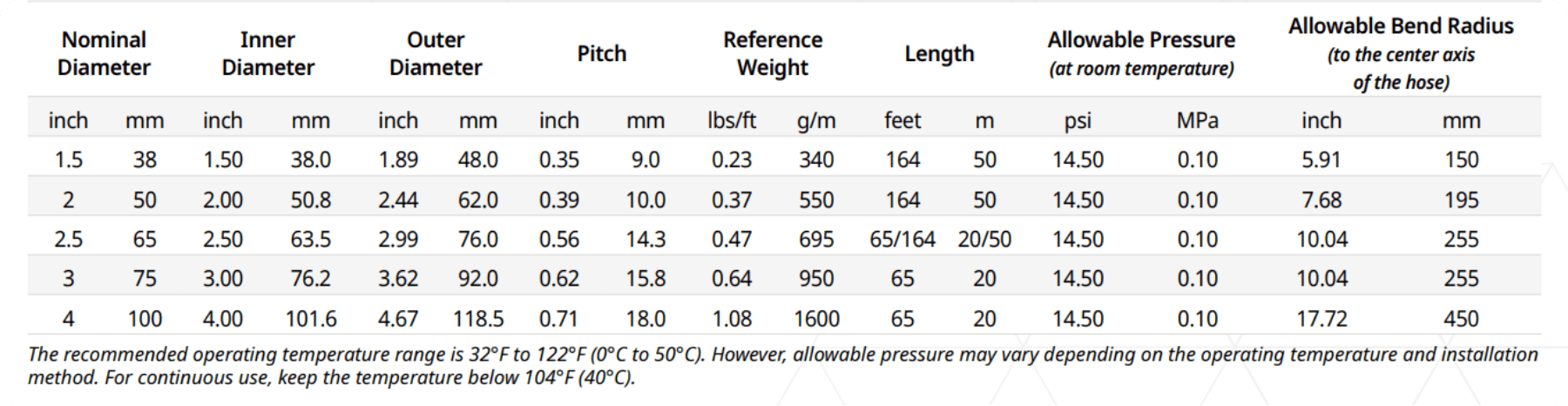

Standard Dimensions and Properties
Operating Temperature Range:
°F: -14 to 122 °C: -10 to 50
Notes:
• The permissible pressure varies with operating temperature.
Antistatic Hose
Non-PVC Hoses
TOTAKU Non-PVC Hoses ECO Series
Founded in 1952, TOTAKU INDUSTRIES, INC. has been a pioneer in the pipes and hose industry, creating the world’s first flexible hose. Driven by our core principle of prioritizing customer satisfaction through exceptional quality, we continuously innovate to meet the evolving needs of our customers. At TOTAKU, we are dedicated to making a positive impact on the world by developing unique, thoughtful products that address modern challenges.
Featured Products
Notice:
• The data in this catalog uses values in a straight hose configuration.
• The permissible pressure is not the maximum operating pressure. Please refer to the “Operating Pressure Design Table” in the hose handling precautions and configure according to the operating pressure (normal working pressure). Also, please note that the combination of fittings and clamps, operating temperature, and bending conditions may affect performance

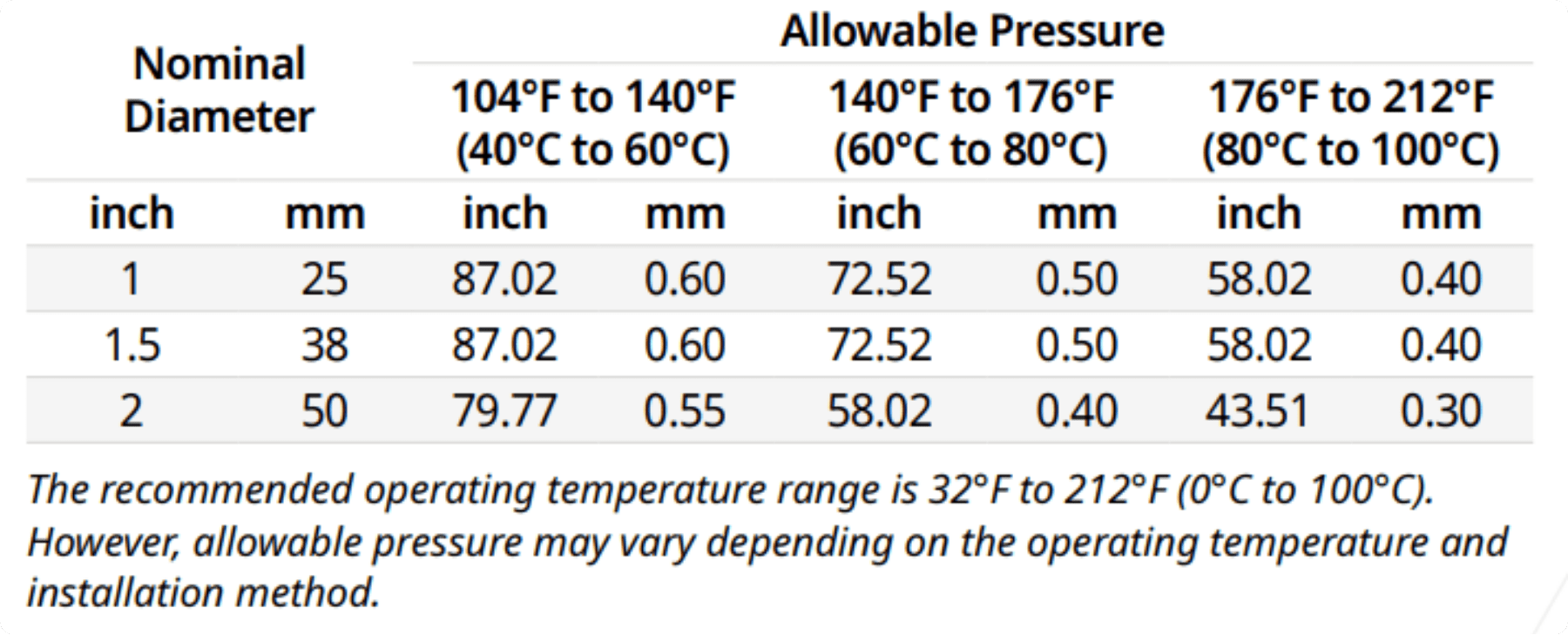

TOTAKU ECO LINE-HO 100°C
Features
- Suitable for transporting oils, fatty foods, and general food products.
- Complies with standards for food and additives established by the Japanese Ministry of Health and Labour and Welfare (Notification No. 370). Note: They do not meet U.S. standards. They are currently under development, so please contact us for more details.
- Can be cleaned with hot water at temperatures up to 212°F (100°C) or with 95% ethanol, ensuring hygienic use.
- Safe for incineration after use without emitting harmful gases. (Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia.)
- Semi-transparent construction allows for easy inspection of transported materials.
- Reinforced with a reinforcing fiber, offering pressure resistance up to 101.5 psi (0.7 MPa).
Applications
- Suitable for transporting edible oils, fatty foods, sake, shochu, and other alcoholic beverages, as well as soft drinks and various liquids or powders.
- Ideal for hygienic piping applications, such as transporting purified water.
- Designed for transporting hot water or similar liquids at temperatures below 212°F (100°C). (Refer to the table below for pressure resistance performance at temperatures above 104°F [40°C].)

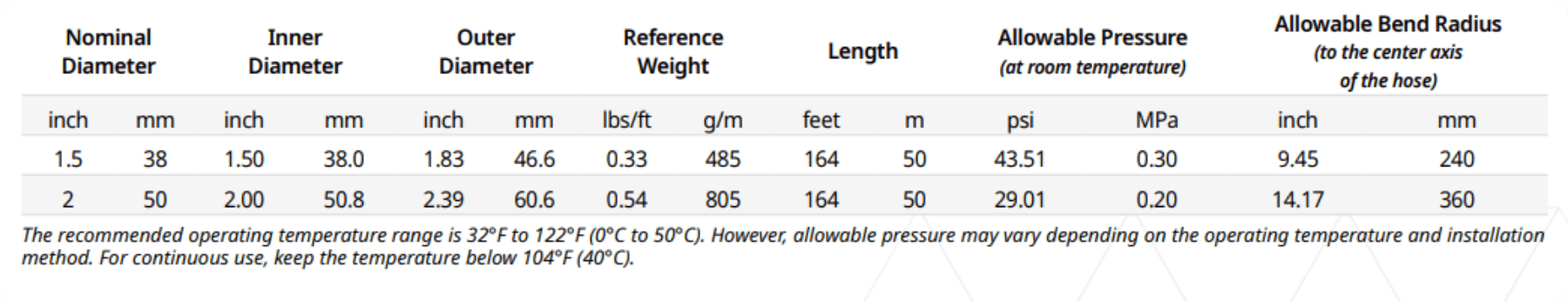

Standard Dimensions and Properties

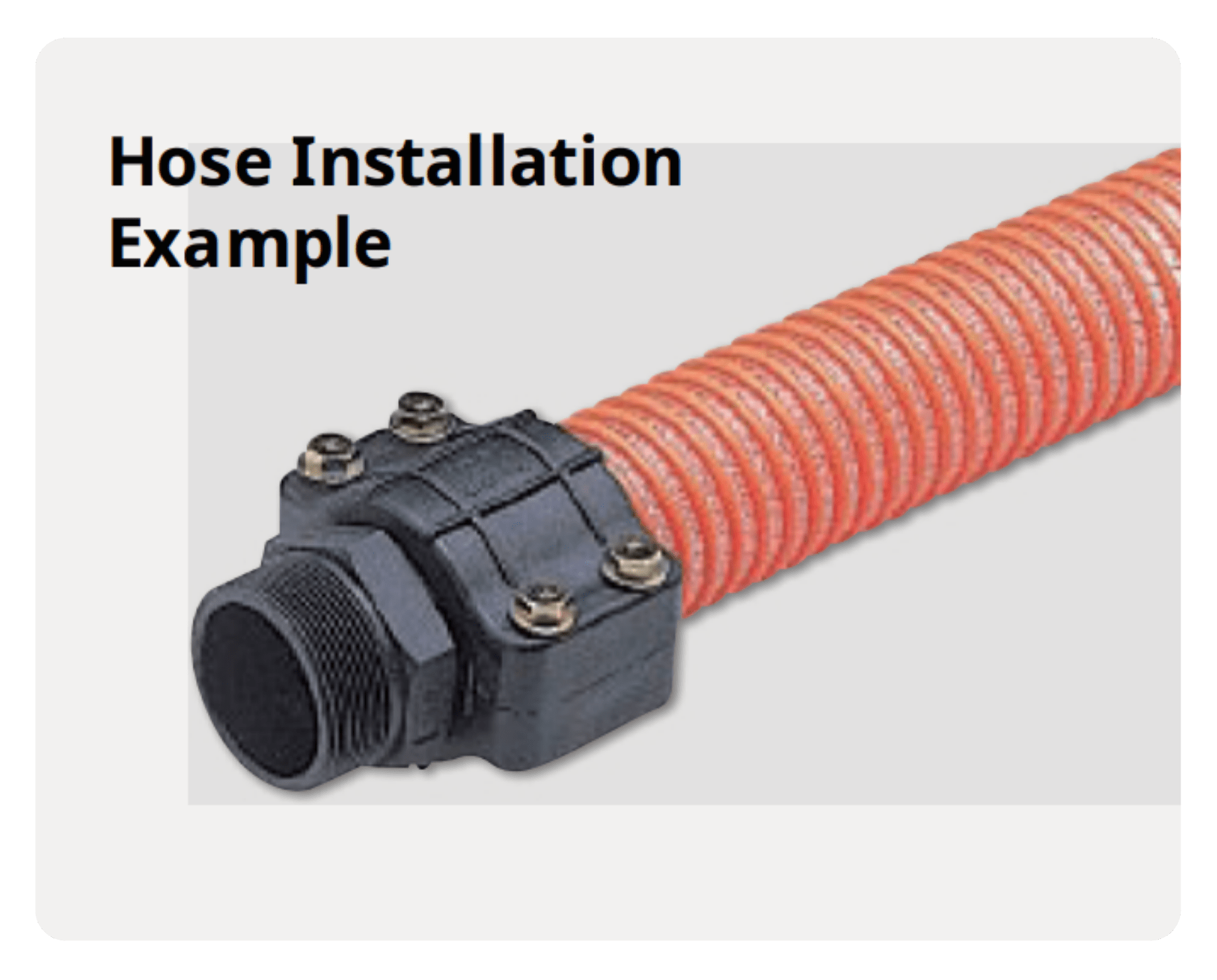

Recommended Fitting Installation Examples

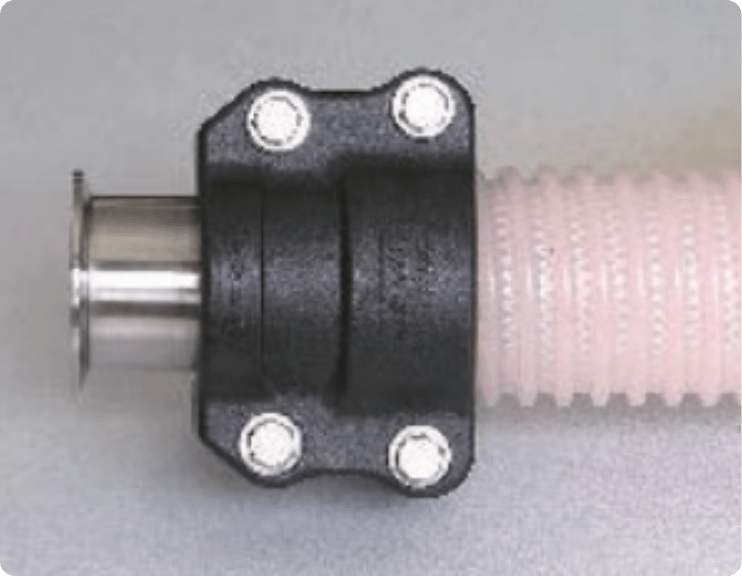

SHIMETAC
(for IDF Ferrule)

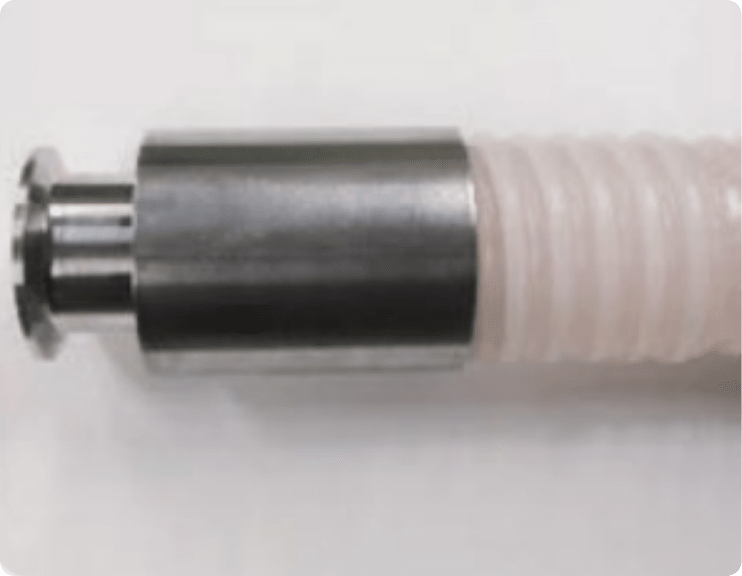

EPDM Corrugated Sealing
with Stainless Steel Crimping
(for IDF Ferrule)
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (−0.1 MPa) is feasible at room temperature.
SHIMETAC for TOTAKU ECO LINE-HO 100℃
Applicable Sizes: 1.5 inches (φ38 mm) and 2 inches (φ50 mm)
Features
- Made from resin, ensuring a lightweight design.
- Rust-free due to its resin construction.
- Equipped with Stainless Steel 304 bolts, flat washers, and nuts.
- Reliable pressure resistance performance.
- Fittings are removable for easy cleaning.
- Designed with a secure structure to prevent detachment.
Notes
- Be sure to use the dedicated fittings for SHIMETAC.
- The fittings shown below are examples.
Pressure Resistance Performance at 212°F (100°C)
Pressure Resistance Performance at 212°F (100°C)
Dedicated Fittings for SHIMETAC

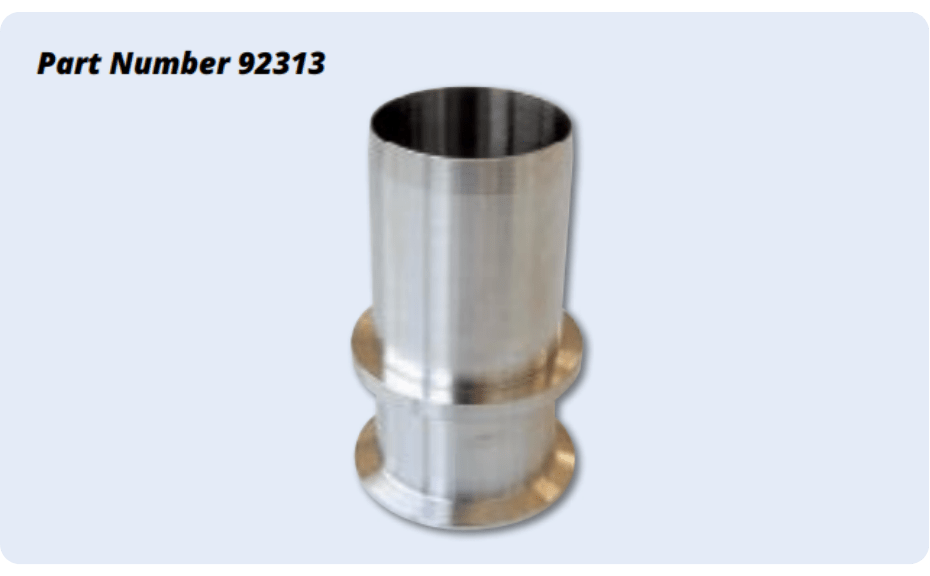

IDF Ferrule with SHIMETAC shank
(Stainless Steel)
M1 SHIMETAC shank
(Stainless Steel)
Flange with SHIMETAC shank
(Stainless Steel)

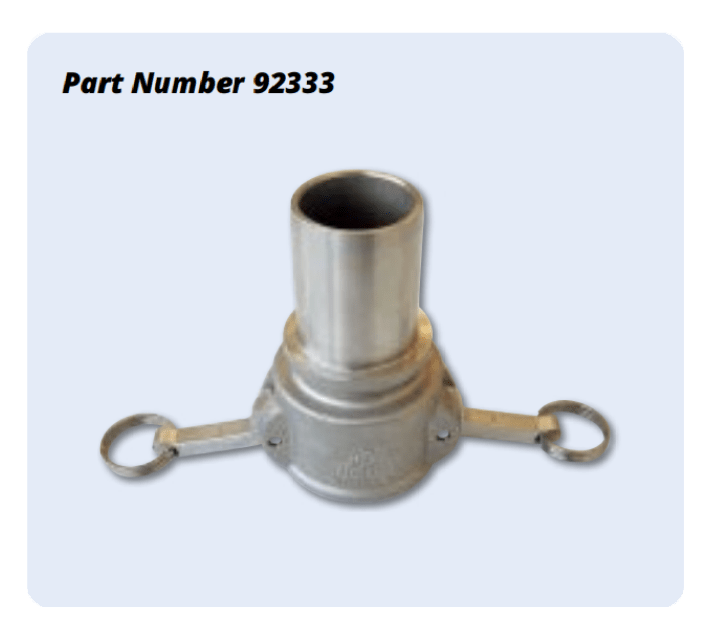

Camlock 633-CTS
(Stainless Steel)
Camlock 633-ETS
(Stainless Steel)
TS Flange with SHIMETAC shank
(PVC)
Loose Flange with SHIMETAC shank
(Polypropylene) | (Flange Part: Structural Steel)
TOTAKU ECO LINE
Features
- Safe for use in food applications. Note: Not suitable for transporting foods or liquids containing oils or fats.
- Meets the standards for food and additives set by the Japanese Ministry of Health, Labour and Welfare (Notification No. 370), excluding elution testing for fatty and oily foods. Note: They do not meet U.S. standards. They are currently under development, so please contact us for more details.
- The U.S. standard is currently under development.
- Can be cleaned with hot water and 95% ethanol, ensuring hygienic use.
- Safe for incineration after use without emitting harmful gases (Incineration ash residue is less than 0.1%).
- Semi-transparent construction allows for easy inspection of transported materials.
- Flexible design enables easy handling during use.
- It is equipped with a reinforcement fiber, providing an allowable pressure of 72.5 psi (0.50 MPa).
Applications
- Suitable for transporting alcoholic beverages such as sake and shochu, as well as soft drinks.
- Ideal for transporting other food products, including liquids and powders.
- Designed for general water suction and discharge applications.
Cautions
- Do not use or store outdoors for extended periods.
Standard Dimensions and Properties
Operating Temperature Range:
°F: 32 to 122 °C: 0 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.
Additional Notes:
¹ Hot water cleaning should be performed under the following conditions: temperature below 176°F (80°C), pressure below 14.5 psi (0.1 MPa), and a pressurization time of 3 minutes or less.
² Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia.
TOTAKU ECO LINE-HO
Features
- Suitable for transporting oils, fatty foods, and general food products.
- Meets the standards for food and additives set by the Japanese Ministry of Health, Labour and Welfare (Notification No. 370), excluding elution testing for fatty and oily foods. Note: They do not meet U.S. standards. They are currently under development, so please contact us for more details.
- Can be cleaned with hot water and 95% ethanol, ensuring hygienic use.
- Safe for incineration after use without emitting harmful gases (Incineration ash residue is less than 0.1%).
- Semi-transparent construction allows for easy inspection of transported materials.
- It is equipped with a reinforcement fiber, providing an allowable pressure of 72.5 psi (0.50 MPa).
Applications
- Suitable for transporting edible oils, fatty foods, sake, shochu, and other alcoholic beverages, as well as soft drinks and various liquids or powders.
Cautions
- Do not use or store outdoors for extended periods.

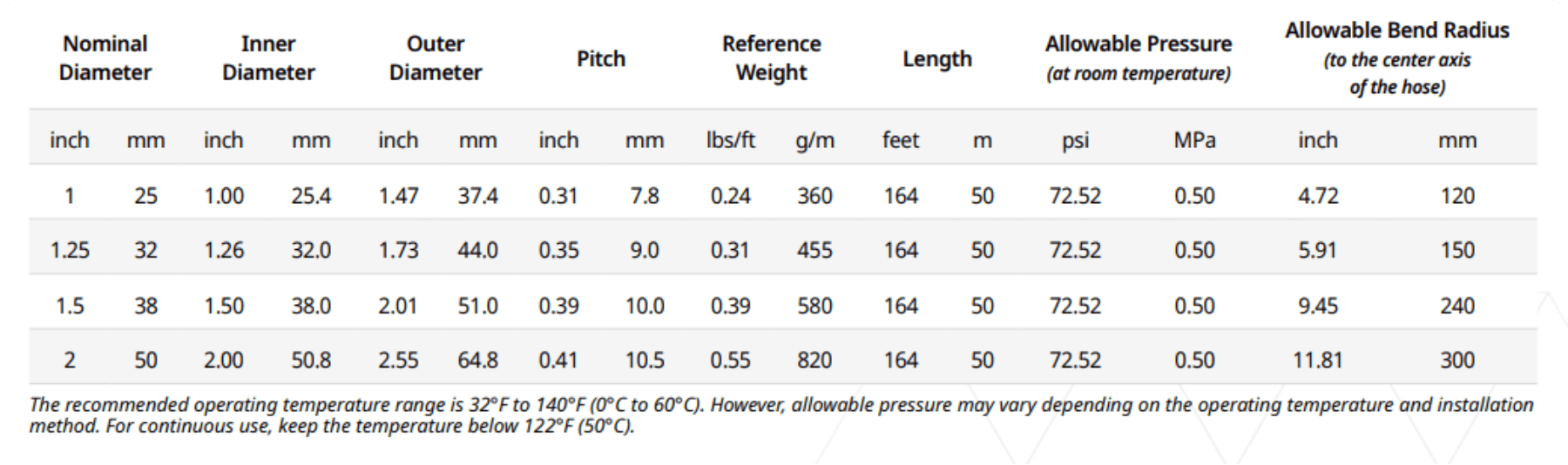

Standard Dimensions and Properties
Operating Temperature Range:
°F: 32 to 140 °C: 0 to 60
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (−0.1 MPa) is feasible at room temperatur
Additional Notes:
¹ Hot water cleaning should be performed under the following conditions: temperature below 176°F (80°C), pressure below 14.5 psi (0.1 MPa), and a pressurization time of 3 minutes or less.
² Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia.
SHIMETAC for TOTAKU ECO LINE
Applicable Sizes: 1 inch (φ25 mm)*, 1.5 inches (φ38 mm), 2 inches (φ50 mm), 2.5 inches (φ65 mm), 3 inches (φ75 mm)
Features
- Made from resin, ensuring a lightweight design.
- Rust-free due to its resin construction.
- Equipped with Stainless Steel 304 bolts, flat washers, and nuts.
- Reliable pressure resistance performance.
- Fittings are removable for easy cleaning.
- Designed with a secure structure to prevent detachment.
Notes
- Be sure to use the dedicated fittings for SHIMETAC.
- The fittings shown below are examples.
Dedicated Fittings for SHIMETAC

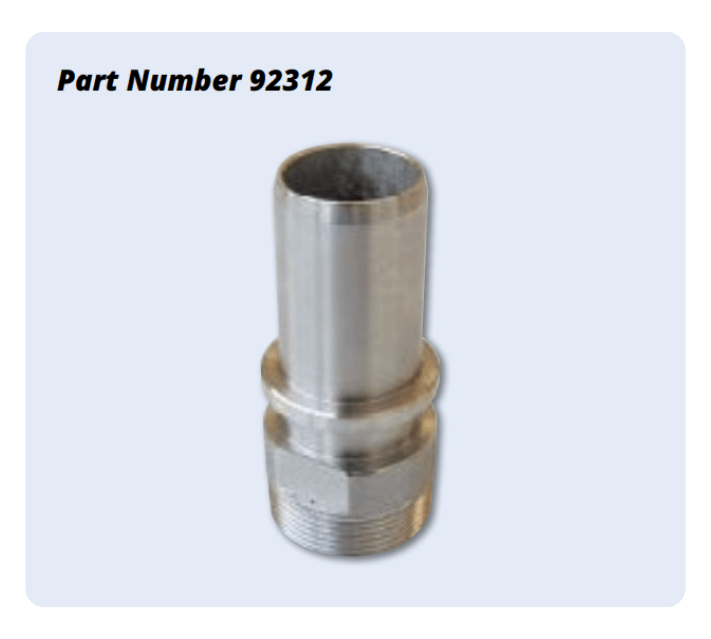

M1 SHIMETAC shank (Stainless Steel)
Also available in Steel Structure

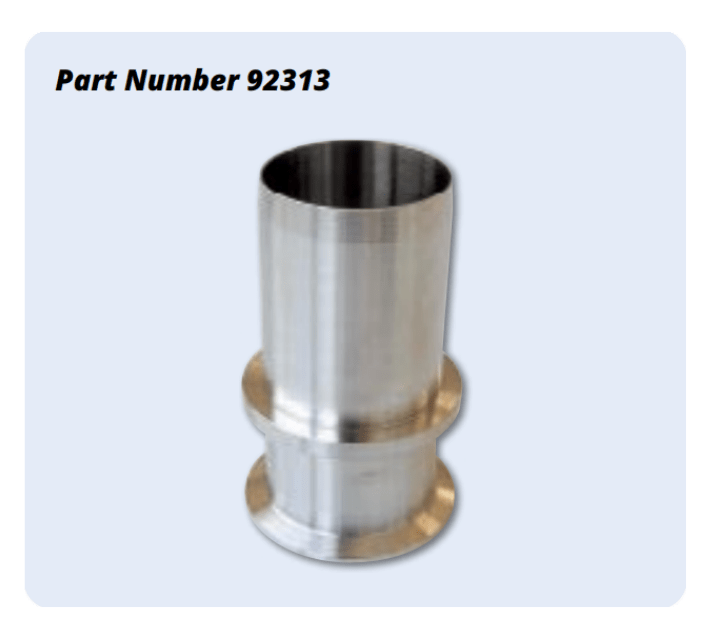

IDF Ferrule with SHIMETAC shank
(Stainless Steel)

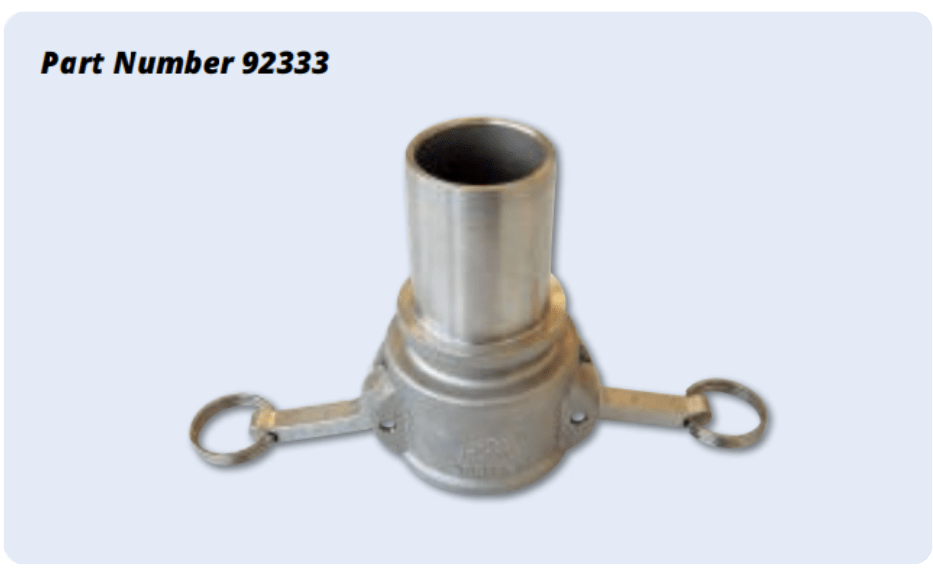

Camlock 633-CTS
(Stainless Steel)
Camlock 633-ETS
(Stainless Steel)
Loose Flange with SHIMETAC shank
(Polypropylene)
(Flange Part: Steel Structure)
Flange with SHIMETAC shank
(Stainless Steel)
TOTAKU ECO PP-SPRING
Applications
• Designed for use as a corrugated sealing material when securing TOTAKU ECO LINE with flat bands or similar fasteners.
• Ideal for preventing localized bending near fittings.
Applicable Sizes:
1 inch (φ25 mm), 1.25 inches (φ32 mm), 1.5 inches (φ38 mm), 2 inches (φ50 mm), 2.5 inches (φ65 mm), 3 inches (φ75 mm)
Example of TOTAKU ECO LINE in Use
TOTAKU ECO SD-AS
Features
- Safe for use in food applications. Note: Not suitable for transporting foods or liquids containing oils or fats.
- Meets the standards for food and additives set by the Japanese Ministry of Health, Labour and Welfare (Notification No. 370), excluding elution testing for fatty and oily foods. Note: They do not meet U.S. standards. They are currently under development, so please contact us for more details.
- Safe for incineration after use without emitting harmful gases.
- The smooth inner surface boosts transport efficiency.
- Ensures strong anti-static properties.
- Lightweight, flexible, and offers excellent abrasion resistance.
- Semi-transparent construction allows for easy inspection of transported materials.
Applications
- Ideal for transporting resin pellets used in food packaging, toys, and other applications.
- Suitable for transporting granular and powdered food products.
- Appropriate for transporting pharmaceuticals.
- Also used for transporting non-food granular and powdered materials.
Cautions
- Do not use or store outdoors for extended periods.
Standard Dimensions and Properties
TOTAKU ECO SD-C
Features
- Safe for use in food applications. Note: Not suitable for transporting foods or liquids containing oils or fats.
- Meets the standards for food and additives set by the Japanese Ministry of Health, Labour and Welfare (Notification No. 370), excluding elution testing for fatty and oily foods. Note: They do not meet U.S. standards. They are currently under development, so please contact us for more details.
- Provides outstanding heat resistance and flexibility.
- Can be cleaned with hot water and 95% ethanol, ensuring hygienic use.
- Safe for incineration after use without emitting harmful gases.
- Lightweight, and offers excellent abrasion resistance.
- Features smooth surfaces on both the interior and exterior.
- Semi-transparent construction allows for easy inspection of transported materials.
Applications
- Suitable for transporting alcoholic beverages such as sake and shochu, as well as soft drinks.
- Ideal for transporting food products and others.
- Designed for general water suction and discharge applications.
Cautions
- Do not use or store outdoors for extended periods.
Operating Temperature Range:
°F: 32 to 122 °C: 0 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5 inHg (−0.1 MPa) is feasible at room tem
Additional Notes:
1 Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia.
Standard Dimensions and Properties
Operating Temperature Range:
°F: 32 to 122 °C: 0 to 50
Notes:
• The permissible pressure varies with operating temperature.
• Operating down to a vacuum level of approximately -29.5inHg (−0.1 MPa) is feasible at room
Additional Notes:
¹ Hot water cleaning should be performed under the following conditions: temperature below 176°F (80°C), pressure below 14.5 psi (0.1 MPa), and a pressurization time of 3 minutes or less.
² Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia
TOTAKU ECO DUCT
Features
- Lightweight and flexible, allowing for easy handling.
- Safe for use in food applications. Note: Not suitable for transporting foods or liquids containing oils or fats.
- Meets the standards for food and additives set by the Japanese Ministry of Health, Labour and Welfare (Notification No. 370), excluding elution testing for fatty and oily foods. Note: They do not meet U.S. standards. They are currently under development, so please contact us for more details.
- Exceptional bending durability. (No defects observed after 1,000,000 bending cycles)
- Transparent construction allows for easy inspection of transported materials.
- Safe for incineration after use without emitting harmful gases. (Incineration ash residue is 0.05% or less).
Applications
- Suitable for air supply and exhaust in equipment and machinery.
- Appropriate for use in intake and exhaust systems of food-grade machinery.
- Ideal for air supply and exhaust in cleanrooms and other environments requiring low particle emission.
- Suitable for drainage purposes (for surface-level drainage).
Cautions
- Do not use or store outdoors for extended periods.
Standard Dimensions and Properties
Operating Temperature Range:
°F: 32 to 122 °C: 0 to 50
Notes:
• The permissible pressure varies with operating temperature.
Additional Notes:
1 Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia.
TOTAKU ECO DUCT-AS
Features
- Lightweight and flexible, allowing for easy handling.
- Safe for use in food applications. Note: Not suitable for transporting foods or liquids containing oils or fats.
- Meets the standards for food and additives set by the Japanese Ministry of Health, Labour and Welfare (Notification No. 370), excluding elution testing for fatty and oily foods. Note: They do not meet U.S. standards. They are currently under development, so please contact us for more details.
- Exceptional bending durability. (No defects observed after 1,000,000 bending cycles)
- Transparent construction allows for easy inspection of transported materials.
- Safe for incineration after use without emitting harmful gases. (Incineration ash residue is 0.05% or less).
Applications
- Suitable for air supply and exhaust in equipment and machinery.
- Appropriate for use in intake and exhaust systems of food-grade machinery.
- Ideal for air supply and exhaust in cleanrooms and other environments requiring low particle emission.
- Suitable for drainage purposes (for surface-level drainage).
Cautions
- Do not use or store outdoors for extended periods.
Standard Dimensions and Properties
Operating Temperature Range:
°F: -4 to 122 °C: -20 to 50
Notes:
• The permissible pressure varies with operating temperature.
Additional Notes:
1 Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia.
